303 Stainless Steel Precision Metal Orifices - Press-Fit Inserts, 0.124"
303 Stainless Steel Precision Metal Orifices - Press-Fit Inserts, 0.124"
SKU:PRE-807a16
High-quality 303 Stainless Steel Orifices for precise flow control in fittings and custom assemblies.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
303 Stainless Steel Precision Metal Orifices - Press-Fit Inserts, 0.124"
$29.99
Quantity: 1
Claim Your Seller Account
303 Stainless Steel Precision Metal Orifices - Press-Fit Inserts, 0.124"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

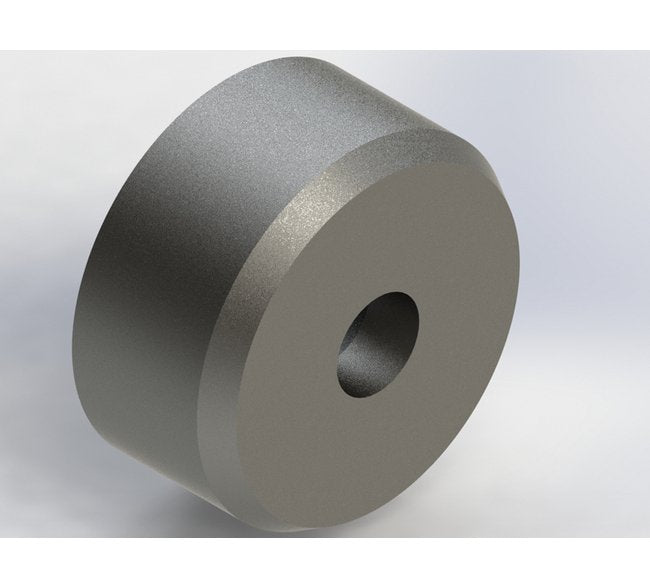

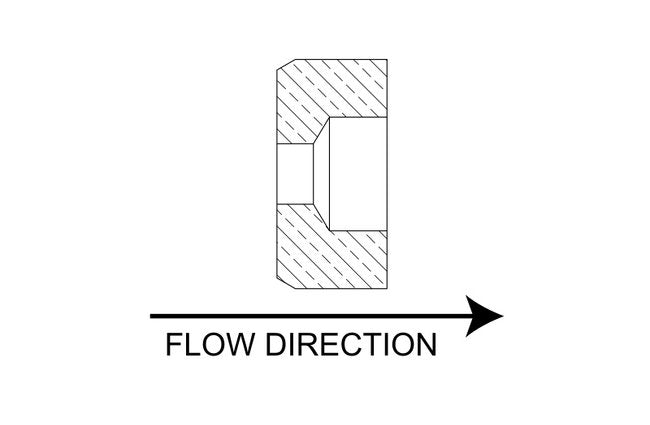

The 303 Stainless Steel Precision Metal Orifices - Press-Fit Inserts are meticulously designed for seamless press-fitting into accurately machined openings in fittings, manifolds, and custom parts. Crafted with precision, these inserts offer a range of sizes and materials to ensure optimal performance and durability. Ideal for applications requiring precise flow rate control of liquids or gases, these orifices provide reliable and efficient operation in various settings.
Product Specifications
Application 0
The inserts can be used with a wide variety of fittings by accurately machining the inside of the fitting. The orifice is then pressed into the fitting for control of the flow rate of liquids or gases. Manifolds or other custom assemblies that require flow rate control of fluids can be accurately machined to press fit the orifices.
Dimensions Maximum Outside Diameter
0.1250 in
Dimensions Minimum Outside Diameter
0.1240 in
Dimensions Orifice Diameter
0.033 in | 0.84 mm
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Press Fit Into Bore
0.1230 to 0.1235 in
Dimensions Total Length
0.060 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.42 | 5 psig: 14.4 | 10 psig: 21.1 | 15 psig: 26.1 | 20 psig: 30.3 | 25 psig: 34.5 | 30 psig: 39.0 | 40 psig: 47.7 | 50 psig: 56.4 | 60 psig: 65.0 | 70 psig: 73.9 | 80 psig: 82.6 | 90 psig: 91.5 | 100 psig: 101
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.03 | 5 psig (34.5 kPag): 6.80 | 10 psig (69.0 kPag): 9.98 | 15 psig (103.4 kPag): 12.3 | 20 psig (137.9 kPag): 14.3 | 25 psig (172.4 kPag): 16.3 | 30 psig (206.9 kPag): 18.4 | 40 psig (275.8 kPag): 22.5 | 50 psig (344.8 kPag): 26.6 | 60 psig (413.7 kPag): 30.7 | 70 psig (482.7 kPag): 34.9 | 80 psig (551.6 kPag): 39.0 | 90 psig (620.6 kPag): 43.2 | 100 psig (689.5 kPag): 47.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 12.1 | 20 In. Hg.: 12.1 | 30 In. Hg.: 12.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.72 | 20 In. Hg. (508 Mm. Hg.): 5.72 | 30 In. Hg. (762 Mm. Hg.): 5.72
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 9.15 | 10 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.32 | 10 In. Hg. (254 Mm. Hg.): 5.43
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.025 | 2 psig: 0.035 | 3 psig: 0.043 | 4 psig: 0.050 | 5 psig: 0.056 | 6 psig: 0.061 | 7 psig: 0.066 | 8 psig: 0.071 | 9 psig: 0.075 | 10 psig: 0.079 | 15 psig: 0.097 | 20 psig: 0.112 | 30 psig: 0.137 | 40 psig: 0.158 | 50 psig: 0.177 | 60 psig: 0.194 | 70 psig: 0.209 | 80 psig: 0.224 | 90 psig: 0.237 | 100 psig: 0.250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.095 | 2 psig (13.8 kPag): 0.134 | 3 psig (20.7 kPag): 0.164 | 4 psig (27.6 kPag): 0.189 | 5 psig (34.5 kPag): 0.212 | 6 psig (41.4 kPag): 0.212 | 7 psig (48.3 kPag): 0.250 | 8 psig (55.2 kPag): 0.268 | 9 psig (62.1 kPag): 0.284 | 10 psig (69 kPag): 0.299 | 15 psig (103.4 kPag): 0.367 | 20 psig (137.9 kPag): 0.423 | 30 psig (206.9 kPag): 0.518 | 40 psig (275.8 kPag): 0.599 | 50 psig (344.8 kPag): 0.669 | 60 psig (413.7 kPag): 0.733 | 70 psig (482.7 kPag): 0.792 | 80 psig (551.6 kPag): 0.846 | 90 psig (620.6 kPag): 0.898 | 100 psig (689.5 kPag): 0.946
Specifications Connection A
.124" Press-Fit Insert
Specifications Cv
0.025
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
33
Specifications Screened
None
