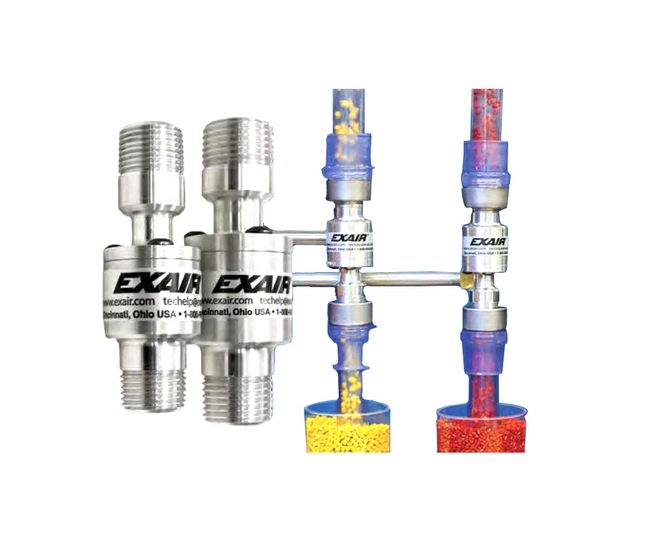

303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
SKU:THR-25fee8
Efficiently convey various materials with the durable 303 Stainless Steel Threaded Line Vac Conveyor - Ideal for institutional procurement needs.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$299.99
Quantity: 1
Claim Your Seller Account
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your conveying system with the 303 Stainless Steel Threaded Line Vac Conveyor featuring high temperature resistance and efficient material transfer capabilities. Ideal for handling plastic pellets, scrap trim, textiles, bulk solids, and more over extensive distances. This conveyor ensures maintenance-free operation, infinite conveying rate control, and compliance with stringent industry standards, creating a reliable solution for institutional and government procurement needs.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
25.90 SCFM | 733 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
1-1/4 NPT
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
High Temperature Type 303 Stainless Steel
Specifications Outlet Thread Size
1-1/4 NPT
Specifications Outside Diameter
2.38 in | 60 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pipe Size
1-1/4 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-42 inWc | -11 kPa
