303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
SKU:THR-275860
Powerful and versatile stainless steel conveyor for efficient material transfer in industrial and institutional settings.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$499.99
Quantity: 1
Claim Your Seller Account
303 Stainless Steel Threaded Line Vac Conveyor - 1-1/4 NPT Inlet
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

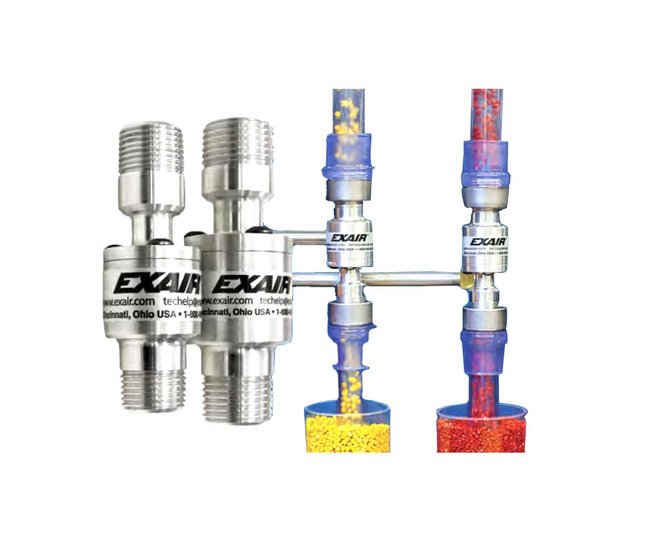

The 303 Stainless Steel Threaded Line Vac Conveyor with a 1-1/4 NPT Inlet is a high-performance solution for conveying plastic pellets, textiles, sawdust, and more over long distances. Designed to meet the needs of both industrial and institutional applications, this conveyor offers efficient material transfer with infinite control of the conveying rate. With a compact design, no moving parts, and easy mounting options, it ensures maintenance-free operation. Ideal for compliance-driven procurement processes, this conveyor is available in aluminum or stainless steel, meets high industry standards, and guarantees reliable performance.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
25.90 SCFM | 733 SLPM
Specifications Air Inlet
1/4 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
2.25 in | 57 mm
Specifications Dimension F1
1.38 in | 35 mm
Specifications Dimension F2
1.38 in | 35 mm
Specifications Dimension H
1.25 in | 32 mm
Specifications Dimension I
1 in | 25 mm
Specifications Dimension J
2 in | 51 mm
Specifications Dimension K
0.31 in | 8 mm
Specifications Dimension L
1.61 in | 41 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.68 in | 43 mm
Specifications Dimension O
0.28 in | 7 mm
Specifications Inlet Thread Size
1-1/4 NPT
Specifications Inside Diameter
1 in | 25 mm
Specifications Material
303 Stainless Steel
Specifications Outlet Thread Size
1-1/4 NPT
Specifications Outside Diameter
2.38 in | 60 mm
Specifications Overall Length
4.63 in | 118 mm
Specifications Overall Width
2.50 in | 64 mm
Specifications Pipe Size
1-1/4 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-42 inWc | -11 kPa
