303 Stainless Steel Threaded Line Vac Conveyor 3/8 NPT Inlet
303 Stainless Steel Threaded Line Vac Conveyor 3/8 NPT Inlet
SKU:THR-32c721
Efficiently convey various materials over long distances with the 303 Stainless Steel Threaded Line Vac Conveyor. Durable, high throughput & maintenance-free.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
303 Stainless Steel Threaded Line Vac Conveyor 3/8 NPT Inlet
$349.99
Quantity: 1
Claim Your Seller Account
303 Stainless Steel Threaded Line Vac Conveyor 3/8 NPT Inlet
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

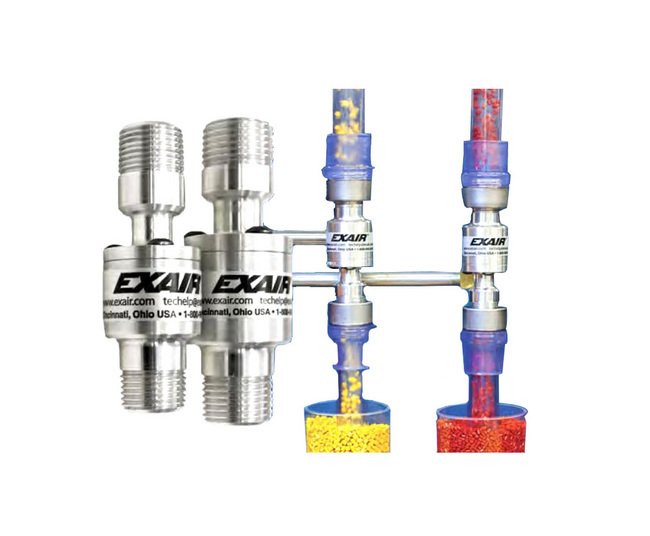

Upgrade your conveying system to efficiency with the 303 Stainless Steel Threaded Line Vac Conveyor. Ideal for institutional applications, this conveyor effortlessly transports plastic pellets, scrap, textiles, and more over long distances. With its aluminum or stainless steel options, high throughput capability, and maintenance-free operation, this Line Vac Conveyor is a durable and reliable solution for your material conveying needs.
Product Specifications
Specifications Advantages
Aluminum or Stainless Steel | Available from Stock | Compact | Fits Standard Pipe | High Throughput Capability | No Moving Parts | Quiet
Specifications Air Consumption
5.60 SCFM | 158 SLPM
Specifications Air Inlet
1/8 NPT
Specifications Applications
Chip Removal | Fiber Tensioning | Filling Operations | Hopper Loading | Material Conveying | Part Transfer | Waste/Trim Removal
Specifications Dimension E
1.13 in | 29 mm
Specifications Dimension F1
1.23 in | 31 mm
Specifications Dimension F2
0.72 in | 18 mm
Specifications Dimension H
0.62 in | 16 mm
Specifications Dimension I
0.41 in | 10 mm
Specifications Dimension J
0.82 in | 21 mm
Specifications Dimension K
0.17 in | 4 mm
Specifications Dimension L
1.13 in | 29 mm
Specifications Dimension M
0.06 in | 2 mm
Specifications Dimension N
1.07 in | 27 mm
Specifications Dimension O
0.18 in | 5 mm
Specifications Inlet Thread Size
3/8 NPT
Specifications Inside Diameter
0.18 in | 5 mm
Specifications Material
303 Stainless Steel
Specifications Outlet Thread Size
3/8 NPT
Specifications Outside Diameter
1.00 in | 25 mm
Specifications Overall Length
2.83 in | 72 mm
Specifications Overall Width
1.25 in | 32 mm
Specifications Pipe Size
3/8 NPT
Specifications Pressure
80 psig | 5.5 bar
Specifications Vacuum Pressure
-120 inWc | -29.9 kPa
