304 Stainless Steel 1" NPT Thermowell with 1/2" NPSM Instrument Connection
304 Stainless Steel 1" NPT Thermowell with 1/2" NPSM Instrument Connection
SKU:NOS-933134
Robust 304 Stainless Steel 1" NPT Thermowell with 1/2" NPSM Instrument Connection for precise temperature monitoring in demanding environments.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
304 Stainless Steel 1" NPT Thermowell with 1/2" NPSM Instrument Connection
$69.99
Quantity: 1
Claim Your Seller Account
304 Stainless Steel 1" NPT Thermowell with 1/2" NPSM Instrument Connection
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 304 Stainless Steel Thermowell with a 1" NPT Stepped Shank and 6" Length, featuring a 1/2" NPSM Mechanical Instrument Connection, is designed for seamless temperature instrument replacement without process shutdown. With a pressure rating of 7,000 psi and bore size of 0.260 inches, this thermowell ensures protection for operators in pressure, corrosive, or high-velocity environments. Ideal for HVACP, petrochemical, oil & gas industries, it complies with industry standards for reliable performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

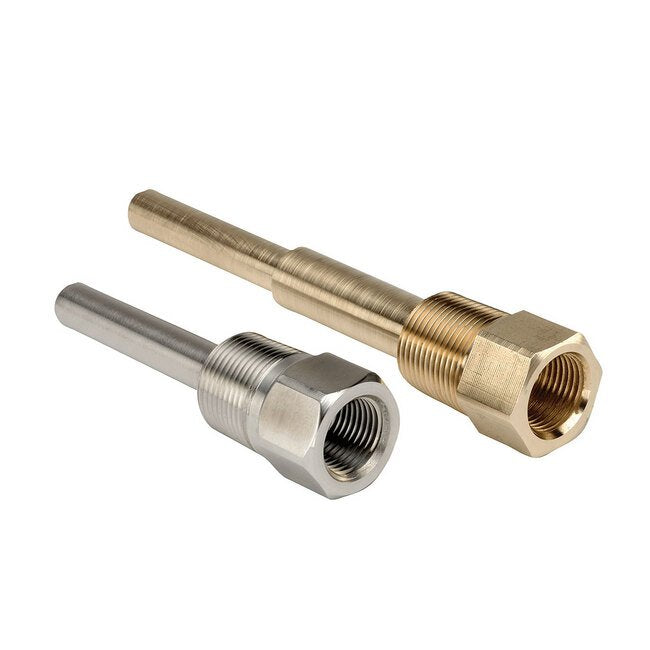

The Female thread will accept the 1/2" NPT Male thread without galling or seizingBrass, 304 Stainless Steel, or 316 Stainless Steel standard material options - other options availableStandard style is stepped, available in straight, tapered and lagging optionsMultiple lagging lengths available
Application Application
Recommended wherever the process being measured is under pressure, corrosive, abrasive, or moving at a high velocityHVACPetrochemicalOil and gasProcess (flanged thermowells)
Limitations Which Apply Are Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Note Note

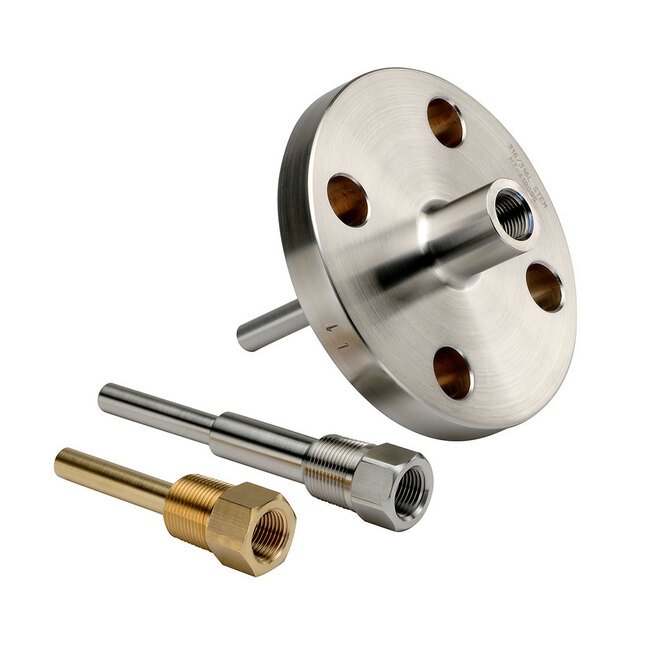

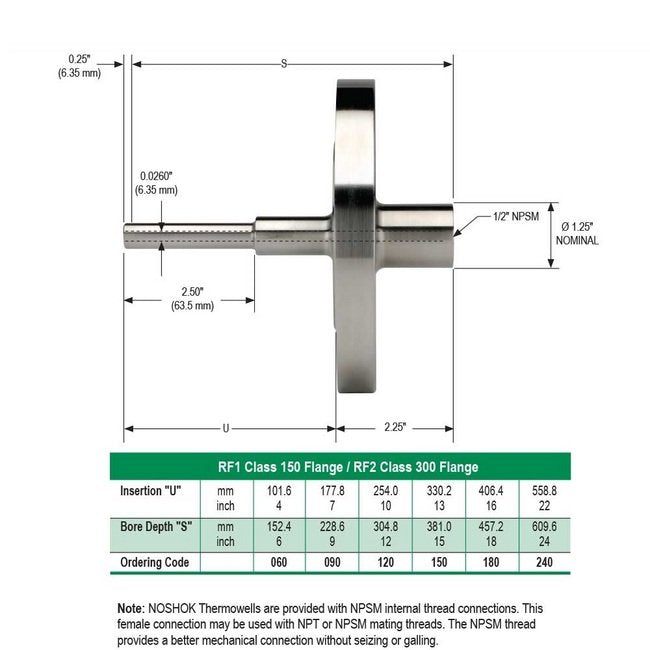

To order a Flange Connection, you must specify Option RF1 or RF2. Flange Connections available only in Stainless steel.
Prop 65 Warnings Prop 65 Warnings
WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Specifications Bore Size
0.260 in | 6.35 mm
Specifications Insertion Diameter B Max
3/4 in | 19.05 mm
Specifications Instrument Connection Size
1/2 in
Specifications Instrument Connection Type
National Pipe Straight Mechanical (NPSM)
Specifications Material
304 Stainless Steel
Specifications Pressure Ratings At 70 Degree Fahrenheit F
7,000 psi
Specifications Process Connection Size
1 in
Specifications Process Connection Type
National Pipe Thread (NPT), Flange
Specifications Shank Diameter Max
0.750 in | 19.05 mm
Specifications Stem Length
6 in
Specifications Stock
Yes
Specifications Style
Stepped Shank
Specifications Type
Thermowell
Specifications Warranty
1 y
