304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

SKU:STA-40f5c5

Marine-grade 304 stainless steel sheave with bronze bushing. Corrosion-resistant, precision-cast design. Ideal for marine and industrial rigging. Suitable for 1/4" to 1" ropes.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$24.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

304 Stainless Steel Bushing Rope Sheave - Suncor Marine Grade

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

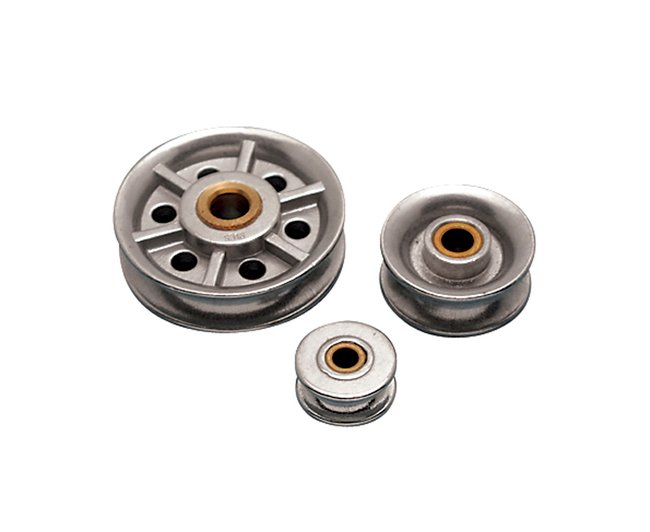

The 304 Stainless Steel Bushing Rope Sheave from Suncor is a reliable rigging component designed for marine and industrial applications. Constructed from grade 304 stainless steel with a bronze bushing, this precision-cast sheave ensures maximum corrosion resistance and durability. With dimensions suitable for rope sizes ranging from 1/4" to 1" and a working load limit of 600 lbs, it offers a perfect fit for a wide range of projects. Trust Suncor's exclusive design for exceptional performance in demanding environments.

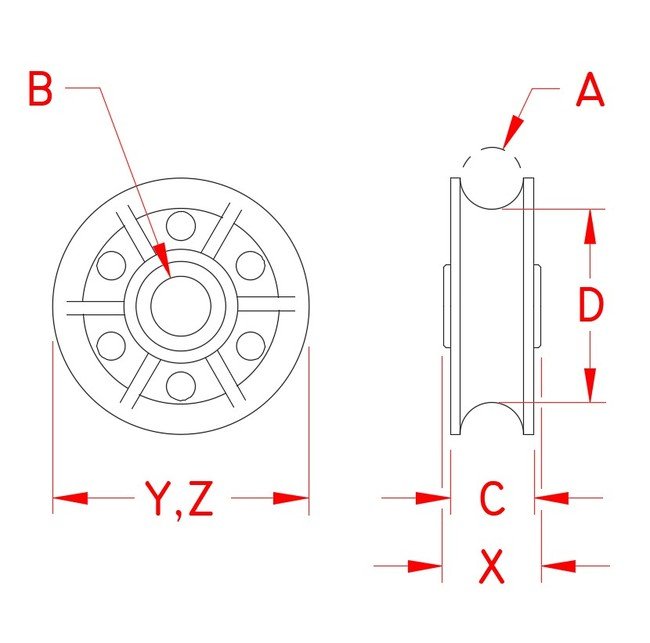

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
3/8 in
Specifications Dimension C
0.57 in
Specifications Dimension D
0.88 in
Specifications Dimension X
0.61 in
Specifications Dimension Y
1.25 in
Specifications Dimension Z
1.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
0.12 lb
Specifications Working Load Limit Wll
600 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
