304 Stainless Steel L-Shaped Immersion Heaters
304 Stainless Steel L-Shaped Immersion Heaters
SKU:HEA-e40fe5
Premium 304 Stainless Steel L-Shaped Immersion Heaters for superior chemical resistance and exceptional performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
304 Stainless Steel L-Shaped Immersion Heaters
$349.99
Quantity: 1
Claim Your Seller Account
304 Stainless Steel L-Shaped Immersion Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The L Series Metal L-Shaped Heaters are meticulously crafted from high-grade 304 stainless steel, offering superior chemical resistance in aqueous alkaline solutions and various tanks. With watt densities of 35 watts per square inch, these heaters ensure exceptional performance and a long service life. Featuring a corrosion-resistant head, grounded construction, and a built-in thermal protector, they prioritize safety while delivering outstanding results. Process Technology's L Series heaters, ranging from 1,000 to 12,000 watts, cater to diverse voltage requirements from 120 to 600 volts, making them ideal for a wide range of applications.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES: Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,000 watts to 12,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory): Replaceable thermal protectors:P4: for solutions up to 230°F (110°C).P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C).P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.

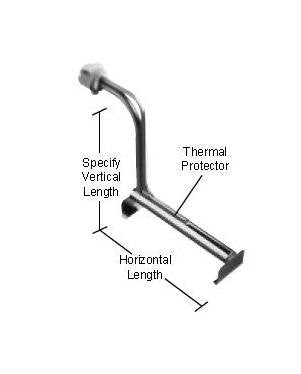

Specifications Horizontal Length
17 " | 432 mm
Specifications Manufacturer
Process Technology
Specifications Material
304 Stainless Steel
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
11.0 Pound
Specifications Vertical Length
19 in | 483 mm
Specifications Volts
120 V
Specifications Watts
2000 W
Specifications Weight
11.0 lbs | 5.0 kg
