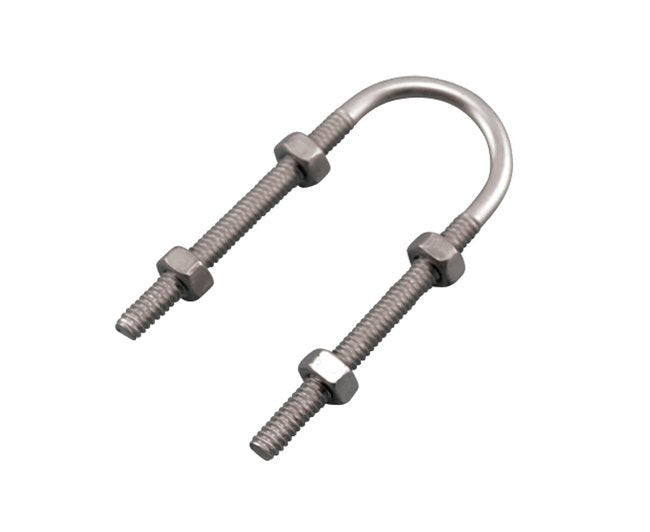

304 Stainless Steel Long U-Bolt with Nuts
304 Stainless Steel Long U-Bolt with Nuts
SKU:STA-0696ac
Durable 304 Stainless Steel Long U-Bolt for marine/industrial use. Meets Federal standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
304 Stainless Steel Long U-Bolt with Nuts
$24.99
Quantity: 1
Claim Your Seller Account
304 Stainless Steel Long U-Bolt with Nuts
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

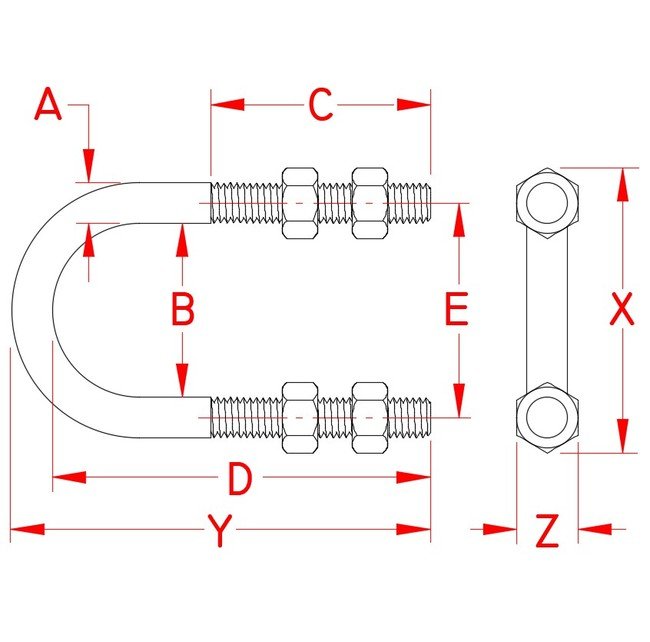

The Suncor Long U-Bolt, crafted from grade 304 stainless steel, features precise dimensions (A: 5/8 in, B: 8.75 in, C: 3.75 in) suitable for marine and industrial applications. With a Working Load Limit of 3,230 lb, this wire-formed U-bolt offers exceptional corrosion resistance. Ideal for securing pipes, conduit, and tubes, it meets Federal/DoD procurement standards and FAR compliance factors.
Product Specifications
Specifications Dimension A
5/8 in
Specifications Dimension B
8.75 in
Specifications Dimension C
3.75 in
Specifications Dimension D
11.50 in
Specifications Dimension E
9.38 in
Specifications Dimension X
10.38 in
Specifications Dimension Y
12.13 in
Specifications Dimension Z
0.94 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
2.22 lb
Specifications Working Load Limit Wll
3,230 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
