304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

SKU:STA-3160fb

High-quality 304 Stainless Steel U-Bolt Kit for marine and industrial use. Corrosion-resistant and durable with UNC thread. Custom sizes available.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

$12.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

304 Stainless Steel Standard U-Bolt Kit with UNC Thread and Nuts

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

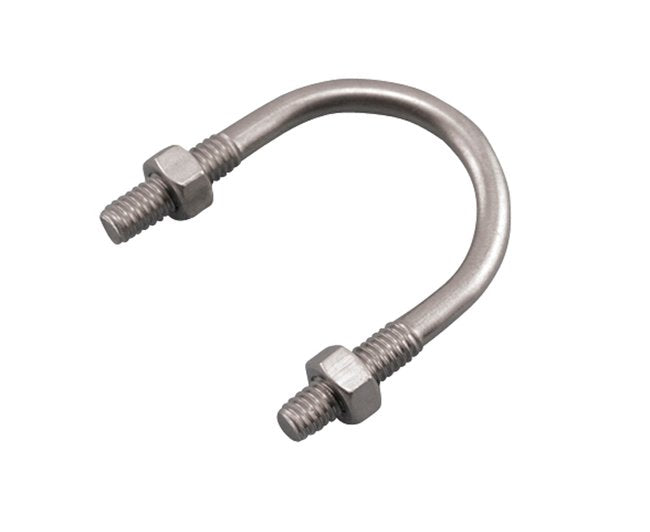

The 304 Stainless Steel Standard U-Bolt Kit with UNC thread and two included nuts is designed for marine and industrial applications. Made from grade 304 stainless steel, this U-bolt offers corrosion resistance and durability, ensuring reliable performance in harsh environments. With dimensions meeting industry standards, including a working load limit of 1,090 lb, this U-bolt is ideal for various installations. Custom sizes are available upon request, providing versatility for different needs.

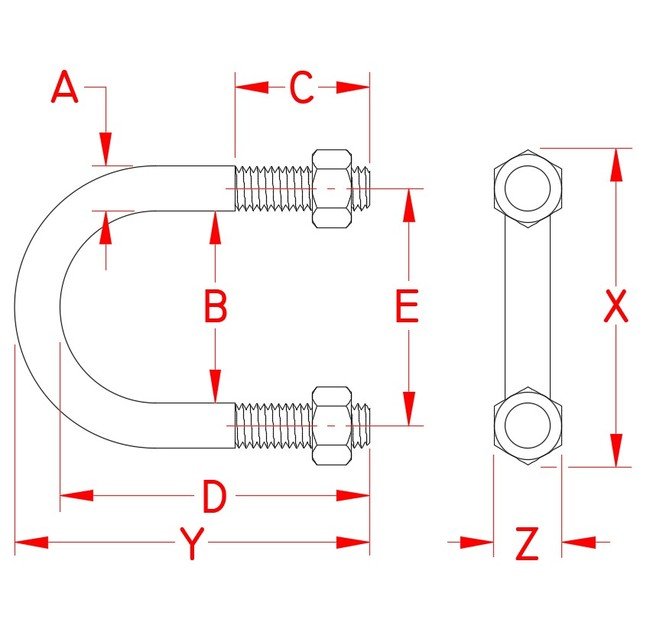

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
1.75 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.75 in
Specifications Dimension E
2.13 in
Specifications Dimension X
2.63 in
Specifications Dimension Y
3.13 in
Specifications Dimension Z
0.57 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.2 lb
Specifications Working Load Limit Wll
1,090 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
