304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

SKU:STA-028a99

Durable 304 Stainless Steel U-Bolt Set, ideal for marine and industrial use. Sizes from 1/4" to 1/2".

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

$12.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

304 Stainless Steel Standard U-Bolt Set with UNC Thread, 1/4"-1/2"

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

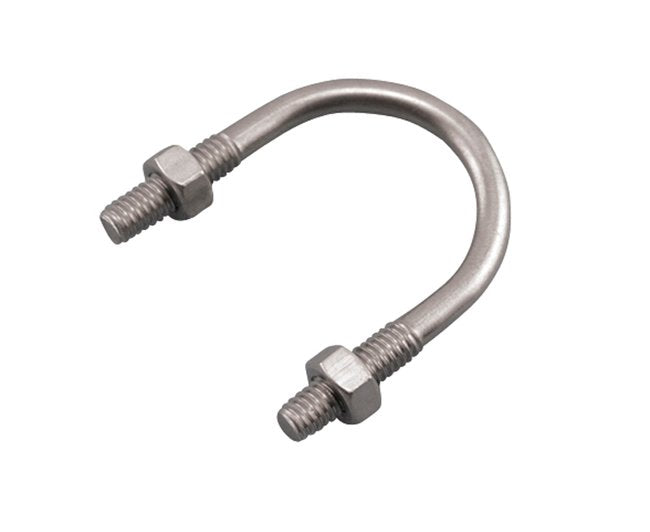

The 304 Stainless Steel Standard U-Bolt Set, with sizes ranging from 1/4" to 1/2", is designed for marine and industrial applications. Made from grade 304 stainless steel, this U-bolt provides exceptional corrosion resistance and durability. Each set includes two nuts, ensuring secure fastening. With a working load limit of 610 lb, this U-bolt is suitable for various heavy-duty applications. Custom sizes are available upon request, catering to specific project needs.

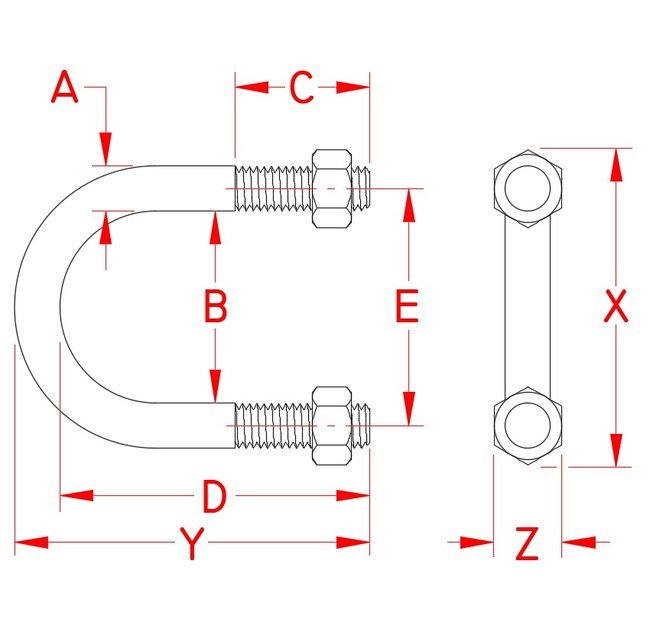

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
2.50 in
Specifications Dimension C
1.00 in
Specifications Dimension D
3.19 in
Specifications Dimension E
2.81 in
Specifications Dimension X
3.31 in
Specifications Dimension Y
3.50 in
Specifications Dimension Z
0.50 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.16 lb
Specifications Working Load Limit Wll
610 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
