304 Stainless Steel Standard U-Bolt - Suncor

304 Stainless Steel Standard U-Bolt - Suncor

SKU:STA-d6a7df

Corrosion-resistant 304 Stainless Steel U-Bolt with UNC thread, ideal for marine and industrial use. Custom sizes available.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt - Suncor

304 Stainless Steel Standard U-Bolt - Suncor

$12.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt - Suncor

304 Stainless Steel Standard U-Bolt - Suncor

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

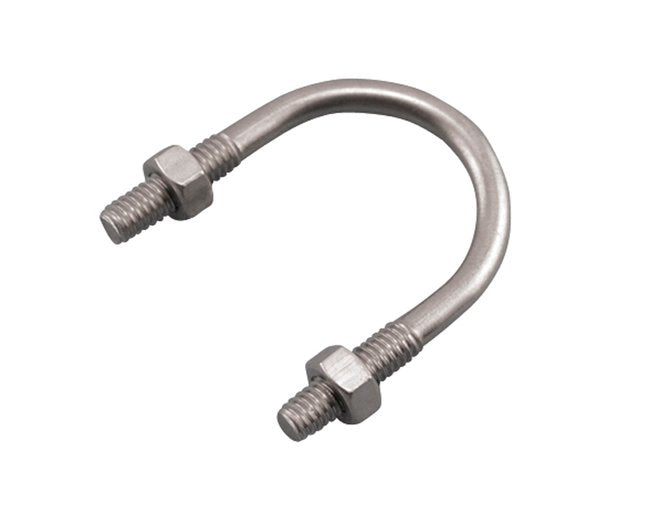

The 304 Stainless Steel Standard U-Bolt by Suncor offers reliable corrosion resistance and durability, ideal for marine and industrial applications. This U-bolt, with UNC thread, comes with two nuts and is available in sizes ranging from 1/4'' to 1/2''. With a working load limit of 610 lb, this wire formed U-bolt meets stringent industry standards, including ASTM and ANSI, ensuring top-notch performance. Its precise dimensions and high-quality stainless steel construction make it a trusted choice for demanding environments. Custom sizes are also available for tailored solutions.

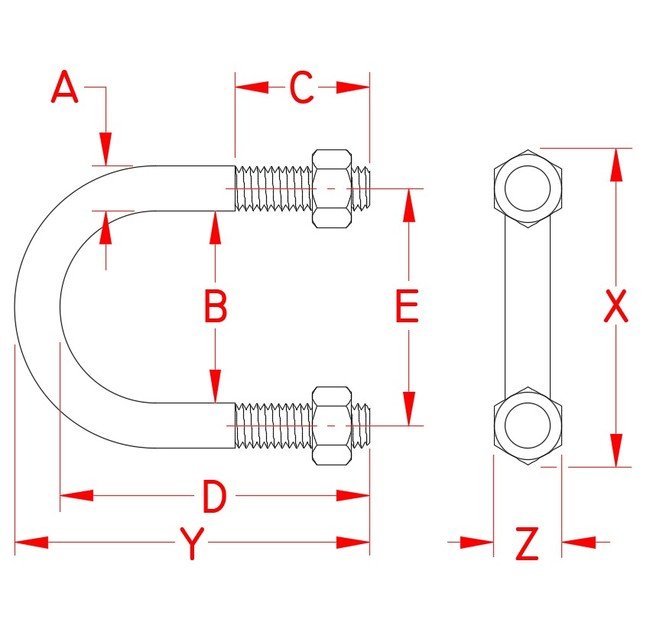

Product Specifications

Specifications Dimension A
5/16 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.00 in
Specifications Dimension D
2.19 in
Specifications Dimension E
1.81 in
Specifications Dimension X
2.31 in
Specifications Dimension Y
2.50 in
Specifications Dimension Z
0.50 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.124 lb
Specifications Working Load Limit Wll
610 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
