304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

SKU:STA-bc78e6

High-quality 304 Stainless Steel U-Bolt with UNC thread, ideal for marine and industrial applications. Custom sizes available.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

$14.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

304 Stainless Steel Standard U-Bolt with UNC Thread (1/4"-1/2")

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

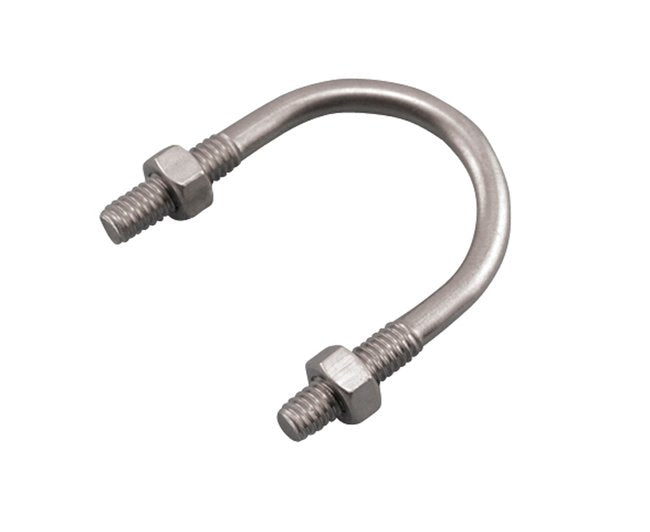

The 304 Stainless Steel Standard U-Bolt, crafted by Suncor, offers a range of sizes from 1/4" to 1/2" with two nuts included. Designed with UNC thread and fabricated using grade 304 stainless steel, it ensures superior corrosion resistance and durability, ideal for marine and industrial settings. This wire-formed U-Bolt, weighing only 0.092 lb, can withstand a working load limit of 435 lb. Custom sizes are also available to meet specific project requirements.

Product Specifications

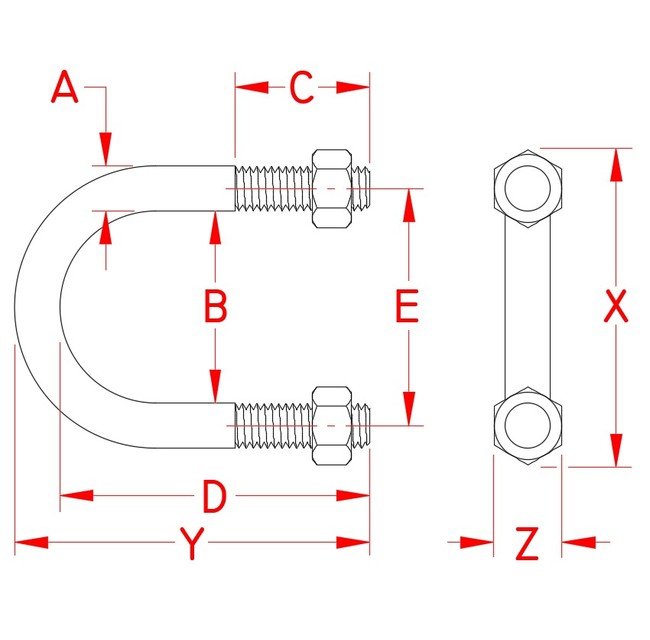

Specifications Dimension A
1/4 in
Specifications Dimension B
1.75 in
Specifications Dimension C
1.38 in
Specifications Dimension D
3.00 in
Specifications Dimension E
2.00 in
Specifications Dimension X
2.44 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
0.44 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.092 lb
Specifications Working Load Limit Wll
435 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
