304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

SKU:STA-2c16dd

Durable 304 Stainless Steel U-Bolt with UNC Thread - Ideal for Marine & Industrial Use

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

$14.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

304 Stainless Steel Standard U-Bolt with UNC Thread - 1/4" to 1/2"

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

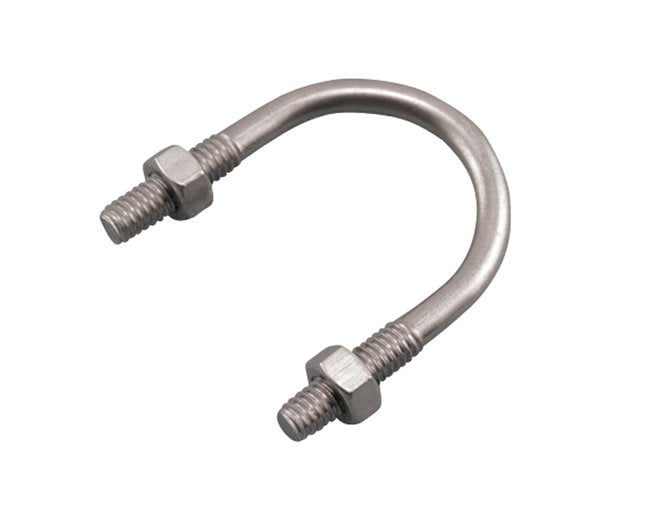

The 304 Stainless Steel Standard U-Bolt is precision-engineered for durability and corrosion resistance, ideal for marine and industrial use. This U-bolt, with UNC thread and included nuts, comes in sizes ranging from 1/4" to 1/2". It meets stringent standards for quality and reliability, making it a trusted choice for various applications. Custom sizes available upon request.

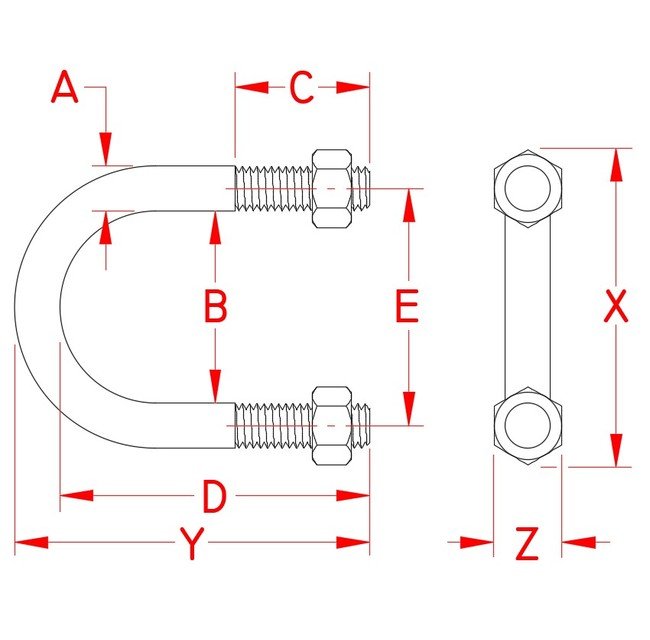

Product Specifications

Specifications Dimension A
1/2 in
Specifications Dimension B
3.00 in
Specifications Dimension C
1.63 in
Specifications Dimension D
4.50 in
Specifications Dimension E
3.50 in
Specifications Dimension X
4.25 in
Specifications Dimension Y
5.00 in
Specifications Dimension Z
0.75 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.59 lb
Specifications Working Load Limit Wll
2,020 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
