304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

SKU:STA-7aa87b

High-grade 304 Stainless Steel U-Bolt with UNC Thread & Nuts for marine and industrial use. Custom sizes available.

Regular price $9.99
Regular price Sale price $9.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

$9.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

304 Stainless Steel Standard U-Bolt with UNC Thread & Nuts

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 304 Stainless Steel Standard U-Bolt is a reliable choice for marine and industrial applications. Made from high-grade stainless steel, it offers superior corrosion resistance and durability. This U-bolt, with UNC thread and included nuts, comes in various sizes from 1/4" to 1/2", meeting the needs of diverse projects. Suncor branded and wire formed, this U-bolt ensures a secure fit and a working load limit of 435 lb. Custom sizes available upon request, catering to specific requirements.

Product Specifications

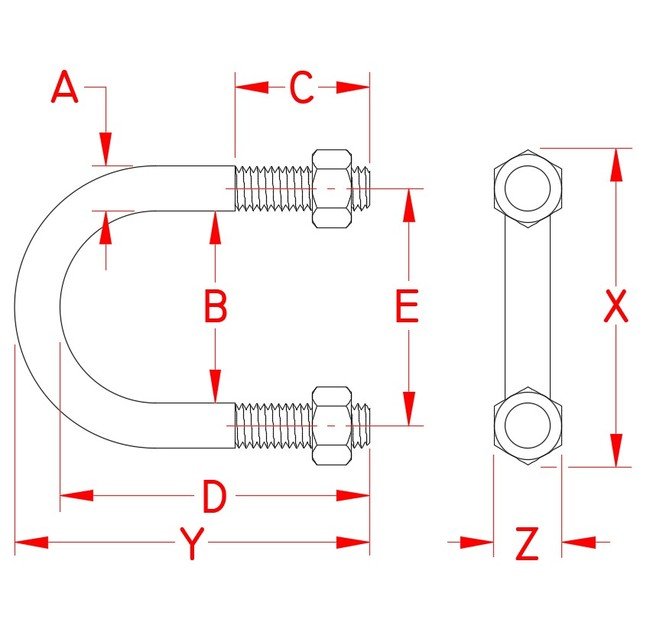

Specifications Dimension A
1/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1.38 in
Specifications Dimension D
2.75 in
Specifications Dimension E
1.75 in
Specifications Dimension X
2.19 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
0.44 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.08 lb
Specifications Working Load Limit Wll
435 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
