304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

SKU:STA-fcf2c9

High-quality 304 Stainless Steel U-Bolt with UNC Thread by Suncor - Perfect for Marine and Industrial Use

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

$14.99

Quantity: 1

Claim Your Seller Account

304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

304 Stainless Steel Standard U-Bolt with UNC Thread - Suncor

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

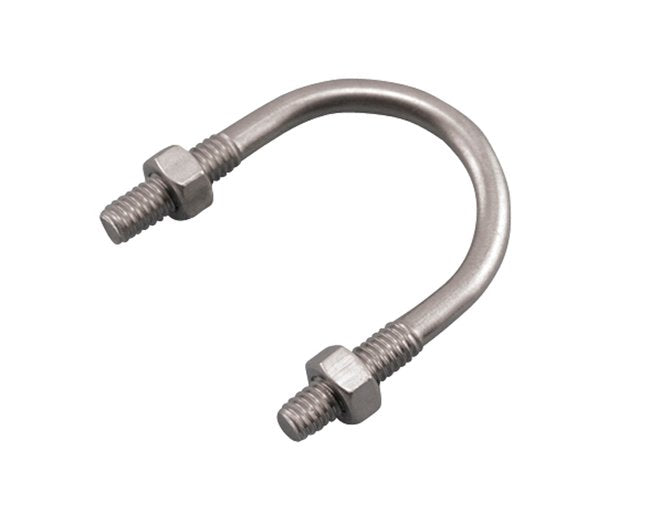

The 304 Stainless Steel Standard U-Bolt by Suncor delivers reliable performance in marine and industrial settings. Constructed from grade 304 stainless steel, this U-Bolt offers exceptional corrosion resistance and durability. Available in sizes from 1/4" to 1/2", with dimensions meeting industry standards. Each unit includes two nuts for secure installation. With a Working Load Limit of 1,090 lb, this U-bolt is ideal for various applications. Custom sizes are also available to meet your specific requirements, ensuring a perfect fit for your projects.

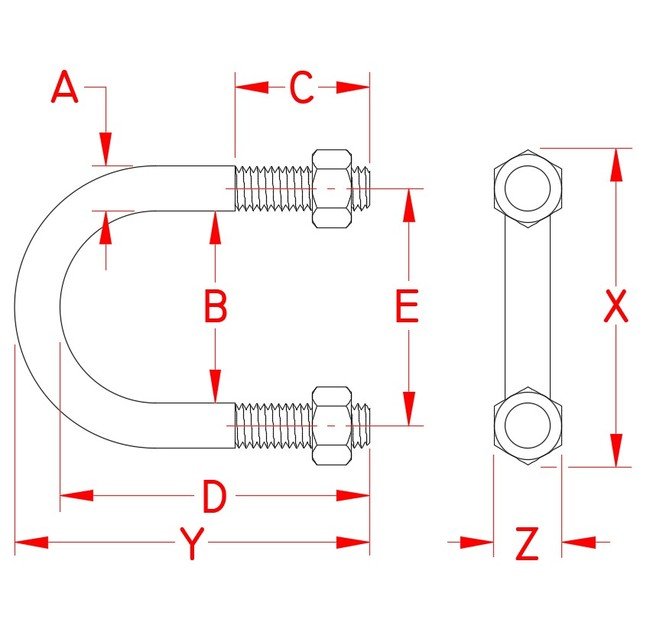

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.25 in
Specifications Dimension E
1.38 in
Specifications Dimension X
1.95 in
Specifications Dimension Y
2.63 in
Specifications Dimension Z
0.57 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.17 lb
Specifications Working Load Limit Wll
1,090 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
