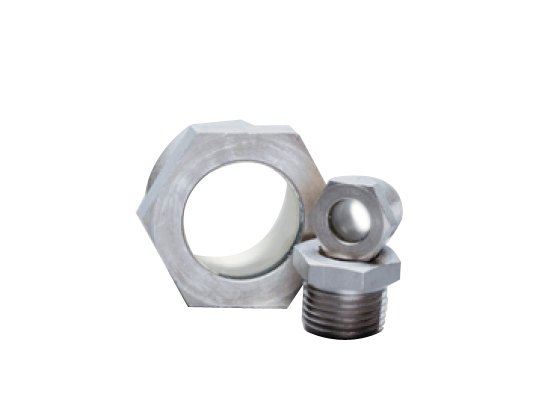

304 Stainless Steel Threaded Sight Glass Window
304 Stainless Steel Threaded Sight Glass Window
SKU:SIG-ad71c8
Enhance liquid level monitoring in corrosive environments with this 304 stainless steel sight glass window. Durable and reliable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
304 Stainless Steel Threaded Sight Glass Window
$29.99
Quantity: 1
Claim Your Seller Account
304 Stainless Steel Threaded Sight Glass Window
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your liquid level monitoring with this 304 stainless steel threaded sight glass window. Designed for corrosive environments, it provides clear visibility and durability. With a lens diameter of 0.937 inches and a maximum design pressure of 250 psi, this sight glass window is ideal for power transmissions, gearboxes, pumps, and more. Ensure safety and efficiency in your operations with this high-quality sight glass window.
Product Specifications
Note For Design Pressure 0
Actual working pressure to which these units are subjected should be chosen by the user to assure a proper margin of safety.
Specifications Hex Size
1 3/8 in
Specifications Hex Thickness
5/16 in
Specifications Length
1 1/4 in
Specifications Lens Diameter
0.937 in
Specifications Material
303 Stainless Steel
Specifications Maximum Design Pressure
250 psi
Specifications Maximum Temperature
400 ºF
Specifications Thread Size Npt
1 - 11.5
