304 Stainless Steel U-Bolt with Plate Kit
304 Stainless Steel U-Bolt with Plate Kit
SKU:STA-e3f8b9
Durable 304 Stainless Steel U-Bolt Kit for marine and industrial use. Custom sizes available. UNC threads with 610 lb WLL.
Regular price

            $24.99


          Regular price






          Sale price

          $24.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

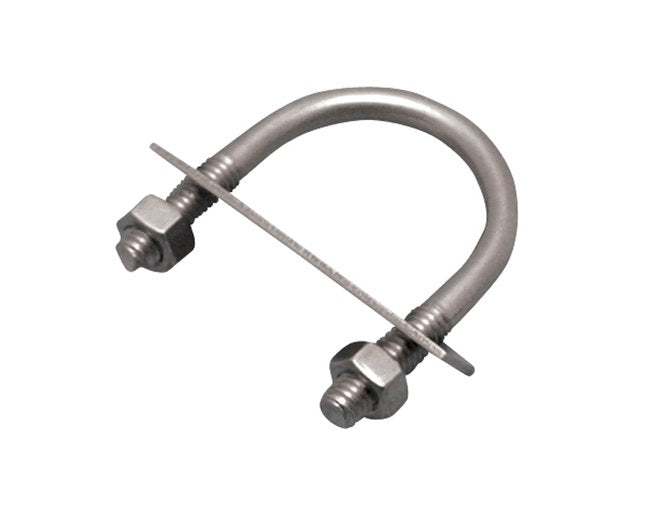

The 304 Stainless Steel U-Bolt with Plate Kit offers superior corrosion resistance and durability for marine and industrial applications. This kit includes a U-bolt made from grade 304 stainless steel, two nuts, and is available in sizes ranging from 1/4" to 1/2" with custom sizes upon request. Designed with UNC threads and featuring a working load limit of 610 lb, this kit meets stringent quality standards, ensuring reliability and longevity in various demanding environments.

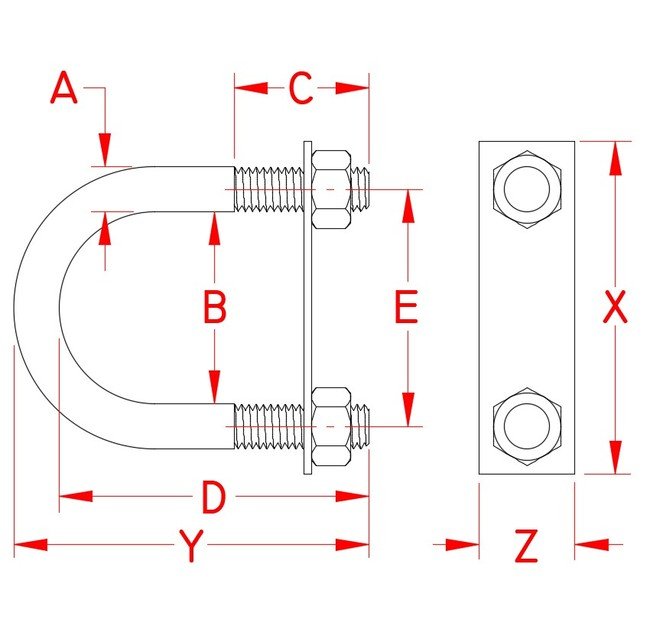

Product Specifications
                  Specifications Dimension A

                5/16 in

                  Specifications Dimension B

                1.75 in

                  Specifications Dimension C

                1.13 in

                  Specifications Dimension D

                2.69 in

                  Specifications Dimension E

                2.06 in

                  Specifications Dimension X

                2.80 in

                  Specifications Dimension Y

                3.00 in

                  Specifications Dimension Z

                0.80 in

                  Specifications Fabrication Type

                Wire Formed

                  Specifications Made In

                Import

                  Specifications Material

                304 Stainless Steel

                  Specifications Weight

                0.18 lb

                  Specifications Working Load Limit Wll

                610 lb

                  CAGE

                1CXX6

                  NAICS

                332722

                  PSC

                5306
