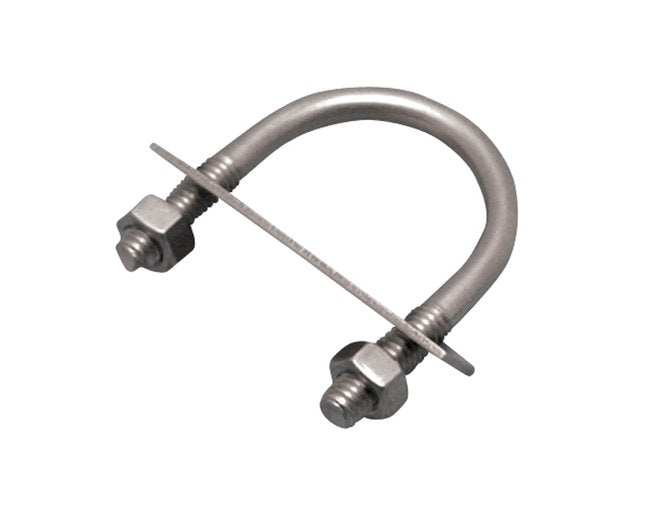

304 Stainless Steel U-Bolt with Plate Kit
304 Stainless Steel U-Bolt with Plate Kit
SKU:STA-d3d899
Durable 304 Stainless Steel U-Bolt Kit with Plate for marine and industrial use. Custom sizes available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 304 Stainless Steel U-Bolt with Plate Kit is a robust solution for marine and industrial applications. Crafted from grade 304 stainless steel, this kit ensures excellent corrosion resistance and durability. Featuring UNC threads and including two nuts, it offers a secure fastening solution. With dimensions meticulously designed for optimal performance, this kit is suitable for various installations. Custom sizes are available upon request, catering to specific project requirements.

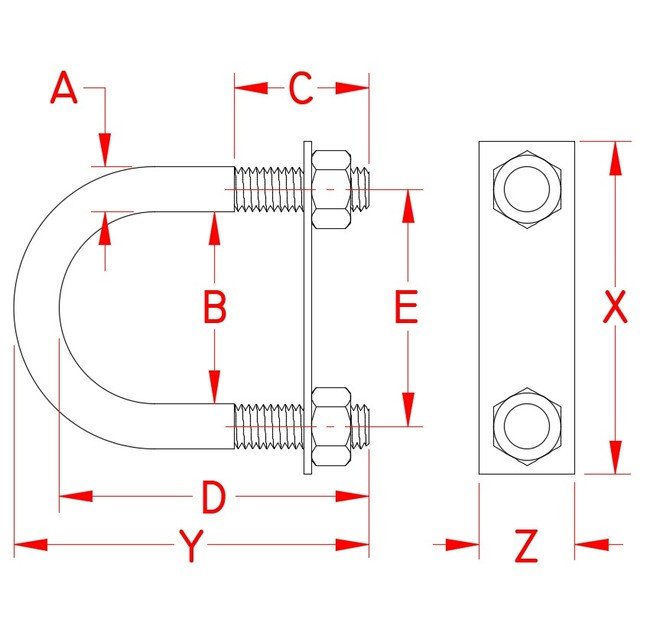

Product Specifications
Specifications Dimension A
3/8 in
Specifications Dimension B
1.00 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.25 in
Specifications Dimension E
1.38 in
Specifications Dimension X
2.20 in
Specifications Dimension Y
2.63 in
Specifications Dimension Z
0.88 in
Specifications Fabrication Type
Wire Formed
Specifications Made In
Import
Specifications Material
304 Stainless Steel
Specifications Weight
0.2 lb
Specifications Working Load Limit Wll
1,090 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
