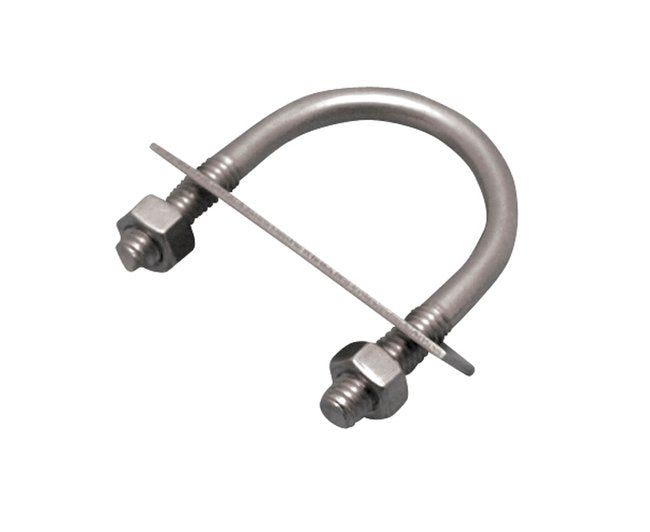

304 Stainless Steel U-Bolt with Plate, Suncor, UNC Thread

Name: 304 Stainless Steel U-Bolt with Plate, Suncor, UNC Thread
Brand: Suncor Stainless, Inc.
SKU: STA-193196
Price: 9.99 USD
Availability: OutOfStock

SKU:STA-193196

Corrosion-resistant 304 Stainless Steel U-Bolt with Plate for marine & industrial applications. Custom sizes avail. UNC thread.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Suncor's 304 Stainless Steel U-Bolt with Plate offers a range of sizes from 1/4" to 1/2" with two nuts included. Made of grade 304 stainless steel, this U-bolt ensures corrosion resistance and durability for marine and industrial applications. With a Working Load Limit of 435 lb, this wire formed U-bolt is ideal for various heavy-duty uses. Custom sizes available upon request, catering to specific project needs.

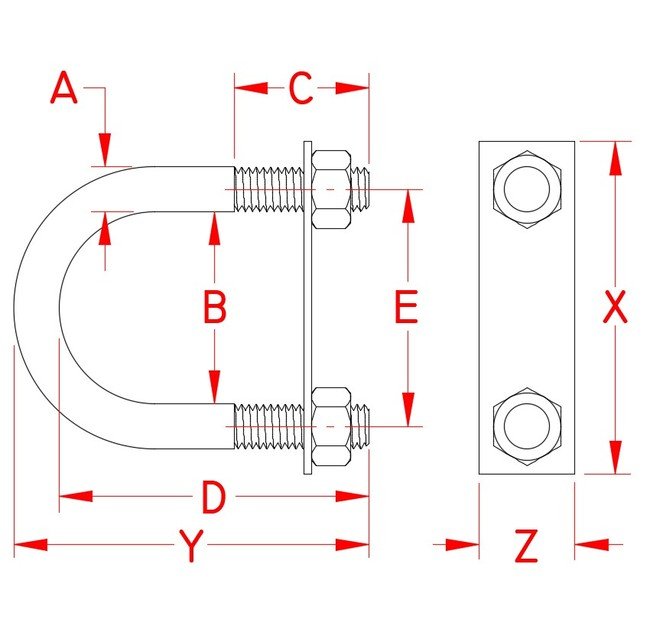

Product Specifications

Specifications Dimension A

1/4 in

Specifications Dimension B

2.00 in

Specifications Dimension C

1.38 in

Specifications Dimension D

3.25 in

Specifications Dimension E

2.25 in

Specifications Dimension X

2.90 in

Specifications Dimension Y

3.50 in

Specifications Dimension Z

0.80 in

Specifications Fabrication Type

Wire Formed

Specifications Made In

Import

Specifications Material

304 Stainless Steel

Specifications Weight

0.14 lb

Specifications Working Load Limit Wll

435 lb

CAGE

1CXX6

NAICS

332722

PSC

5306
