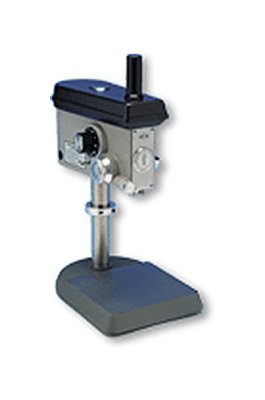

305mm Column Servo Drill Press with Chuck Spindle
305mm Column Servo Drill Press with Chuck Spindle
SKU:DRI-032e4f
Precision drill press for laboratory and production work, high accuracy depth control, variable speed spindle, quick drill change chuck.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
305mm Column Servo Drill Press with Chuck Spindle
$899.99
Quantity: 1
Claim Your Seller Account
305mm Column Servo Drill Press with Chuck Spindle
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 305mm Column Servo Drill Press offers precision and versatility for laboratory, prototype, and precision production work. With options in chuck and collet models, this drill press features high accuracy down stop for depth control, variable speed spindle, keyless Albrecht chuck for quick drill changes, and a wide selection of bases and accessories.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)

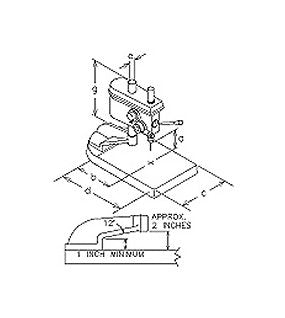

Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
12 in | 305 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
6 in | 152 mm
Technical Specs Mt3 Spindle Weldon
Chuck
Technical Specs Overall Height
18 in | 457 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
