305mm Column Servo Standard Drill Press with Collet Spindle
305mm Column Servo Standard Drill Press with Collet Spindle
SKU:DRI-ab06dc
Precision and versatility in a compact design for laboratory and precision work.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
305mm Column Servo Standard Drill Press with Collet Spindle
$699.99
Quantity: 1
Claim Your Seller Account
305mm Column Servo Standard Drill Press with Collet Spindle
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

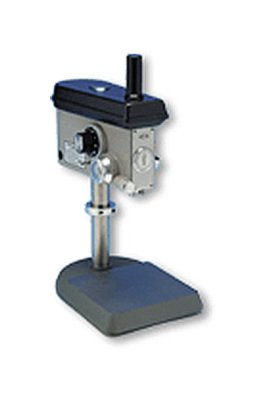

The 305mm Column Servo Standard Drill Press with Collet Spindle is designed for precision production work in laboratories and prototypes. With options in chuck and collet models, inch or metric calibrations, and an array of features including high accuracy down stop for depth control, variable speed spindle, and a wide selection of bases and accessories, this drill press delivers exceptional performance and versatility. It meets stringent government procurement standards and is ideal for institutional buyers seeking reliable and compliant equipment.
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)

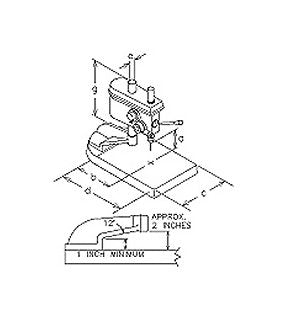

Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo
Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
12 in | 305 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
7.5 in | 190 mm
Technical Specs Mt3 Spindle Weldon
Collet
Technical Specs Overall Height
18 in | 457 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
