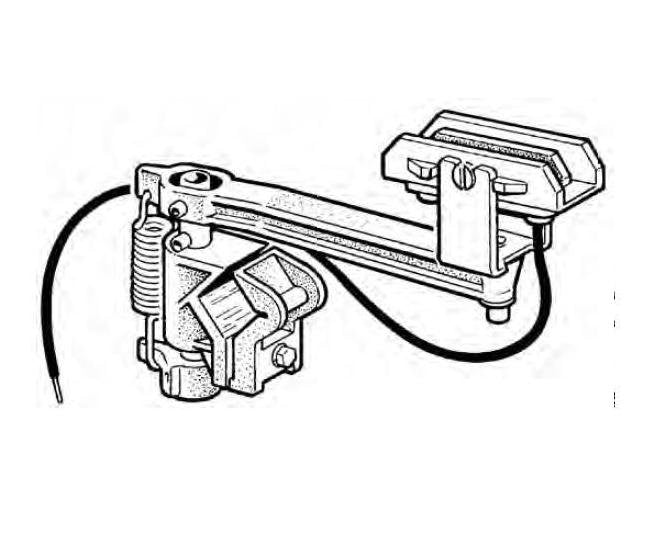

30A J Head H Base Type Collector Assembly
30A J Head H Base Type Collector Assembly
SKU:CRA-a868d7
Efficiently collect power in crane control systems with the 30A J Head H Base Type Collector Assembly.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
30A J Head H Base Type Collector Assembly
$89.99
Quantity: 1
Claim Your Seller Account
30A J Head H Base Type Collector Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

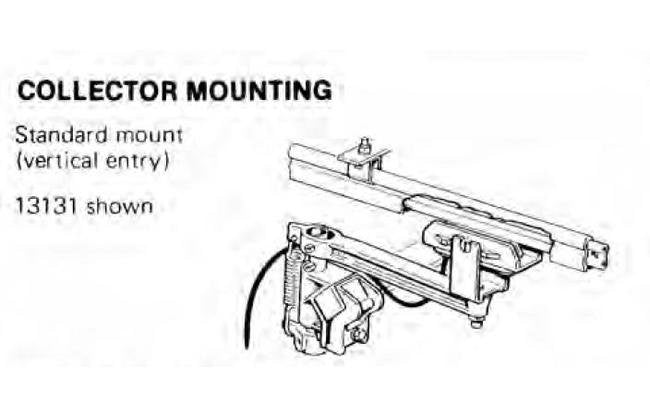

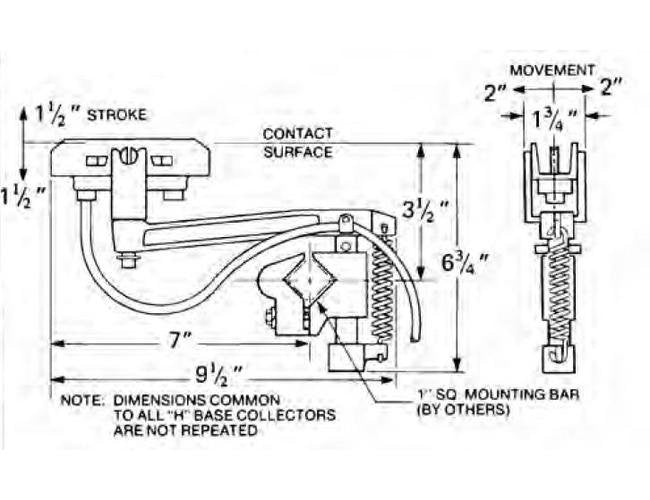

The 30A J Head H Base Type Collector Assembly is designed for efficient power collection in crane control systems. Available in single or double contact shoe types, it features easily replaceable contact shoes supported by insulated holders, ensuring minimal downtime for maintenance. With a 30A amperage rating and self-centering standard mount design, this collector assembly is suitable for systems up to 600 volts with straight runs and curves down to an 18' minimum radius. Ideal for lateral mounts with consultation. Compatible for use with Pick-up Guides.
Product Specifications
Specifications Amperage Rating
30 A
Specifications Type
Standard Mount, self centering
Specifications Weight
1.7 lb
