30A Sliding Contact Collector Assembly with Replaceable Shoes
30A Sliding Contact Collector Assembly with Replaceable Shoes
SKU:CRA-052a1a
Versatile 30A collector assembly with replaceable shoes for efficient crane control. Ideal for systems up to 600 volts.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
30A Sliding Contact Collector Assembly with Replaceable Shoes
$89.99
Quantity: 1
Claim Your Seller Account
30A Sliding Contact Collector Assembly with Replaceable Shoes
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30A Sliding Contact Collector Assembly with Replaceable Shoes is a versatile solution ideal for crane control and electrification applications. Available in single or double contact shoe types, this assembly features easily replaceable contact shoes to minimize operational downtime. Supported by insulated holders on articulating, spring-loaded collector arms, this assembly is designed for systems up to 600 volts with straight runs and curves to a minimum radius of 18 inches. For lateral mount options, consult the factory for tailored solutions.
Product Specifications
Specifications Amperage Rating
30 A
Specifications Type

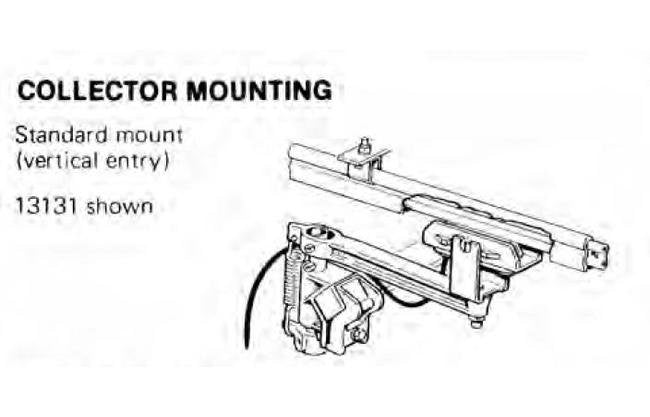

Standard Mount
Specifications Weight
1.4 lb
