Reliable 31 Series Double-Ended Plug Cable Assembly for high voltage applications. Sea level rated with bayonet coupling

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

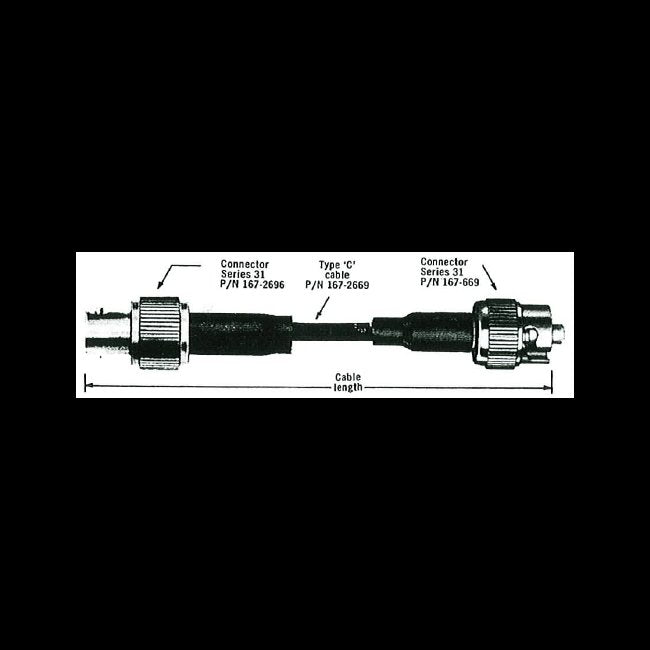

The 31 Series Double-Ended Plug Cable Assembly is a high-quality solution for high voltage applications, boasting a sea level rating for reliability since 1950. With a test voltage of 7.5 kVDC at sea level, current rating of 10 Amp, and operating temperature range of -40 to 85 °C, this assembly ensures secure connections. Its bayonet coupling style and brass coupling nut with gold plating enhance durability. Mates all Series 311 Cond. 1 receptacles and adaptors, meeting the most stringent standards in high voltage connectivity.

Product Specifications

Body Properties Coupling Nut Finish

Gold Plated

Body Properties Coupling Nut Material

Brass

Specifications Altitudereduced Pressure Rating

Sea Level

Specifications Assembly Type

Double-Ended Plug - Receptacle Cable Assembly

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 Amp

Specifications End 1

1672696

Specifications End 2

1670669

Specifications Export Classification

TBD

Specifications Mating Compatibility

Mates all Series 311 Cond. 1 receptacles and adaptors.

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Polarization

Cond. 1

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

Specifications Standardnon Standard

Non-standard Part

Specifications Test Voltage

7.5 kVDC at sea level

Specifications Voltage Rating

6.5 kVDC
