31 Series High Voltage Cable Assembly
31 Series High Voltage Cable Assembly
SKU:HIG-cb74bc

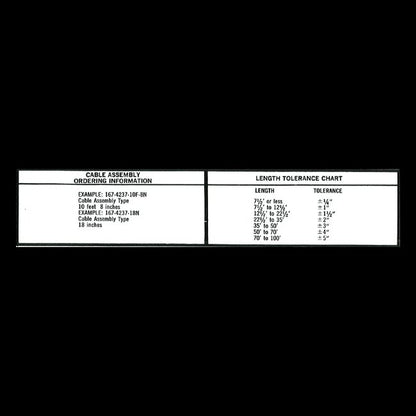

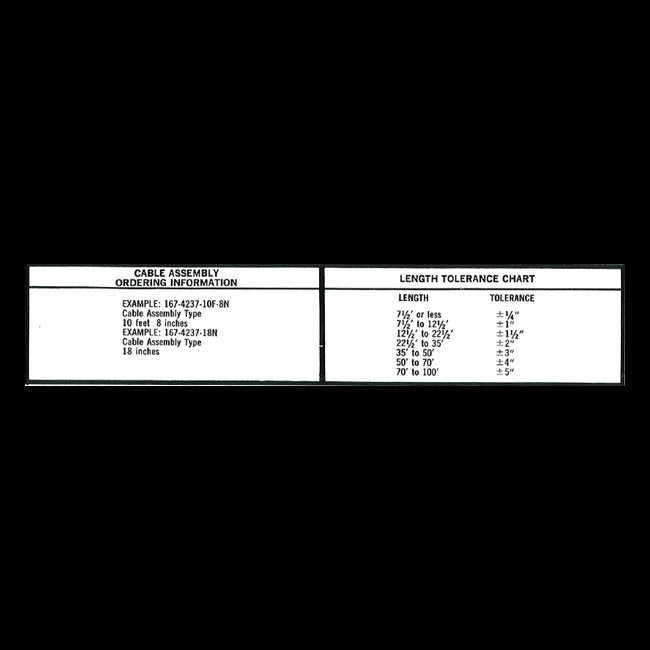

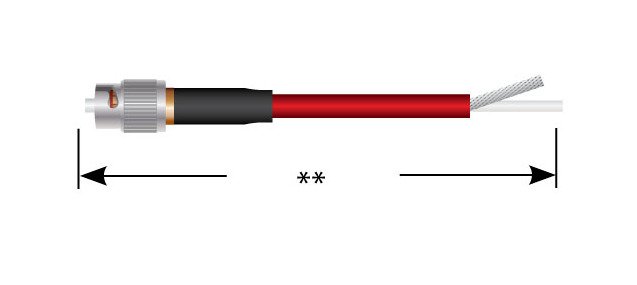

High-voltage 31 Series Cable Assembly for 6.5 and 15 kVDC applications. Sea-level rated with brass bayonet coupling nut.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
31 Series High Voltage Cable Assembly
$89.99
Quantity: 1
Claim Your Seller Account
31 Series High Voltage Cable Assembly
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 31 Series Cable Assembly is a high-quality solution designed for high voltage applications at 6.5 and 15 kVDC. This single-ended shielded cable assembly boasts a sea-level rating, ensuring reliable performance. With a current rating of 10 Amp and a test voltage of 7.5 kVDC at sea level, this assembly is built for durability and efficiency. The brass bayonet coupling nut with nickel finish, along with gold-plated body properties, enhances connectivity and signal transmission. Ideal for institutional and government buyers requiring stringent procurement standards.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 31 (P/N 167-0669) Step 1 Cut cable to length, clean and square. Slip boot over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Step 2 Insert sleeve under braid as shown. Rosin-flux and pot tin dip both the inner core and exposed braid using SN60 solder in accordance with J-STD-006. Remove all flux. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Step 4 Slip prepared cable into the connector body until the flange inside the connector butts against braid cut off. Solder connector body to braid through 4 holes using SN60 solder in accordance with J-STD-006. Clean thoroughly. Step 5 Slide boot into position as shown. Â Download this page as a PDF for best print quality.
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Plug Cable Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Braid Termination
Solder
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications End 1
167-0669
Specifications End 2
Pig Tail
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
31
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at sea level
Specifications Voltage Rating
6.5 kVDC
