31 Series Reverse Locking Circuit Board Support

Name: 31 Series Reverse Locking Circuit Board Support
Brand: All Electronics Hardware
SKU: 01C-c9be04
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-c9be04

Securely mount circuit boards with the 31 Series Reverse Locking Circuit Board Support, compliant with ASTM and RoHS standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31 Series Reverse Locking Circuit Board Support is a crucial component for securely mounting circuit boards in place. Made of high-quality Nylon 66 UL94V-2 material, this support ensures durability and heat resistance within a temperature range of -40 to 185F (-40 to 85C). Its reverse locking mechanism provides added security during assembly, while the precise dimensions cater to board and chassis requirements. Compliant with ASTM D 4066, PA111 standards and RoHS regulations, this support meets stringent industry benchmarks for reliability and safety.

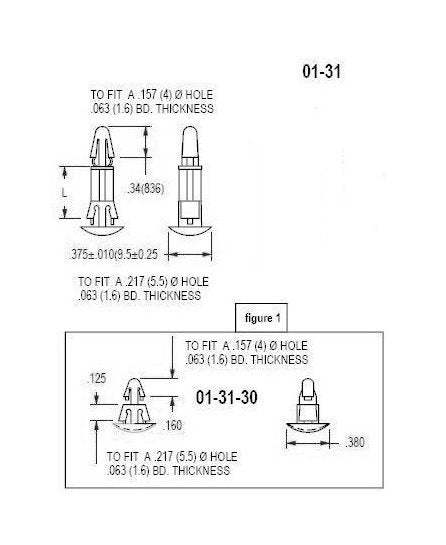

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.375 (9.5) inches (mm)

Specifications Dim L

.472 (12.0) inches (mm)

Specifications Material Code

UL94V-2

31 Series Reverse Locking Circuit Board Support
