31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2

Name: 31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-2d5279
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-2d5279

Secure circuit boards effectively with the durable 31 Series Reverse Locking Support made of Nylon 66 UL94V-2 material. RoHS compliant, ideal for various conditions.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31 Series Reverse Locking Circuit Board Support is a crucial component for securing circuit boards in place with precision and reliability. Made from Nylon 66 UL94V-2 material, this support ensures enhanced durability and safety. It features dimensions perfect for industry-standard board hole diameters, board thicknesses, and chassis configurations. With a wide temperature range of -40 to 185F (-40 to 85C), this support is suitable for various environmental conditions. RoHS compliant and meeting ASTM D 4066, PA111 standards, it guarantees top-notch performance and adherence to quality specifications.

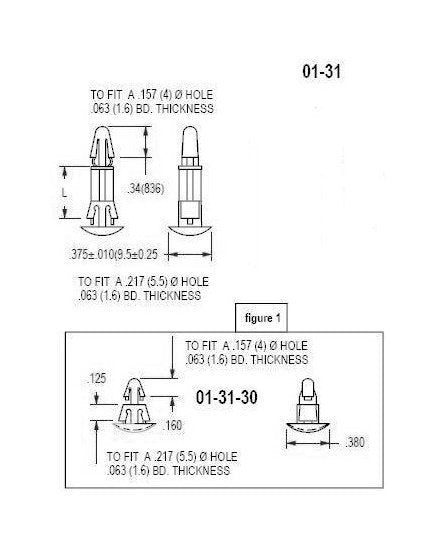

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.375 (9.5) inches (mm)

Specifications Dim L

.197 (5.0) inches (mm)

Specifications Material Code

UL94V-2

31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
