31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
SKU:01C-cc2965
Secure circuit boards with precision using the 31 Series Reverse Locking Support, crafted from durable Nylon 66 UL94V-2 material. RoHS compliant and ASTM certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
$29.99
Quantity: 1
Claim Your Seller Account
31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 31 Series Reverse Locking Circuit Board Support is designed to securely hold circuit boards in place, ensuring stability and longevity. Made from durable Nylon 66 UL94V-2 material, this support offers exceptional strength and heat resistance. With dimensions tailored for precise fitment and a chassis hole diameter of .217 inches, it provides reliable support for boards with thickness ranging from .02 to .070 inches. RoHS compliant and meeting ASTM D 4066, PA111 standards, this circuit board support guarantees safety and quality in any application. Upgrade to UL94V-0 for enhanced protection.

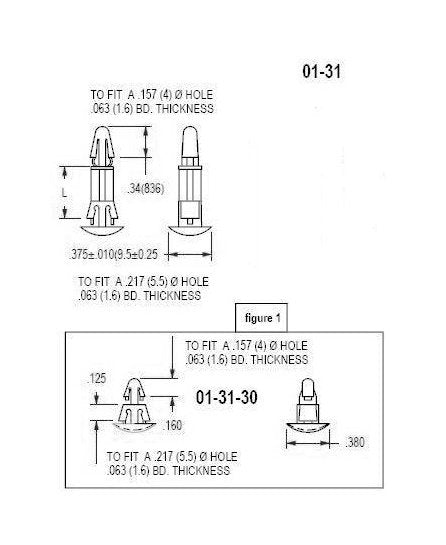

Product Specifications
Specifications Board Hole Diameter
.157 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Hole Diameter
.217 (5.5) inches (mm)
Specifications Chassis Thickness
.02 - .070 (.5 - 1.8) inches (mm)
Specifications Dim Hd
.375 (9.5) inches (mm)
Specifications Dim L
.378 (9.6) inches (mm)
Specifications Material Code
UL94V-2
