31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2

Name: 31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-23d9db
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-23d9db

High-quality Reverse Locking Circuit Board Support made of Nylon 66 UL94V-2 for secure board mounting and RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31 Series Reverse Locking Circuit Board Support is a top-tier solution for securely mounting circuit boards. Constructed from Nylon 66 UL94V-2 material, this support offers exceptional durability and reliability. With a temperature range of -40 to 185F, it ensures stable performance in various environments. The product complies with RoHS standards and ASTM D 4066, PA111, meeting the stringent requirements of modern electronics manufacturing. Ideal for industrial applications requiring precise board support and secure locking mechanisms.

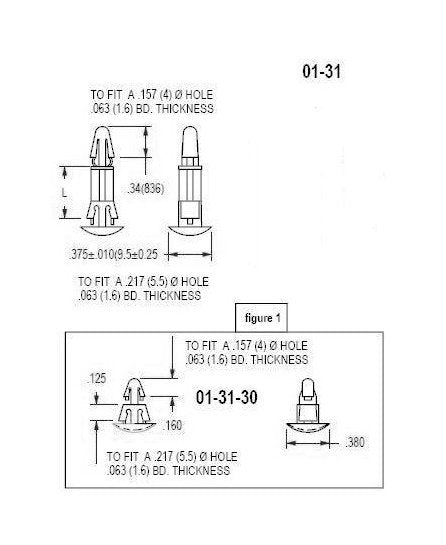

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.380 (9.65) inches (mm)

Specifications Dim L

.125 (3.18) inches (mm)

Specifications Material Code

UL94V-2

31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
