31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2

Name: 31 Series Reverse Locking Circuit Board Support - Nylon 66 UL94V-2
Brand: All Electronics Hardware
SKU: 01C-acaad1
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-acaad1

Secure circuit boards with the durable 31 Series Reverse Locking Support made of Nylon 66 UL94V-2 material. RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31 Series Reverse Locking Circuit Board Support is a reliable solution designed for securing circuit boards in place. Made of Nylon 66 material with a UL94V-2 fire rating, this support ensures durability and safety. With dimensions suited for board and chassis holes, it offers a secure fit while maintaining stability. Compliant with RoHS standards, ASTM D 4066, and PA111, this support is suitable for a wide range of applications. Operable in temperatures from -40 to 185F (-40 to 85C), it guarantees performance under varying environmental conditions.

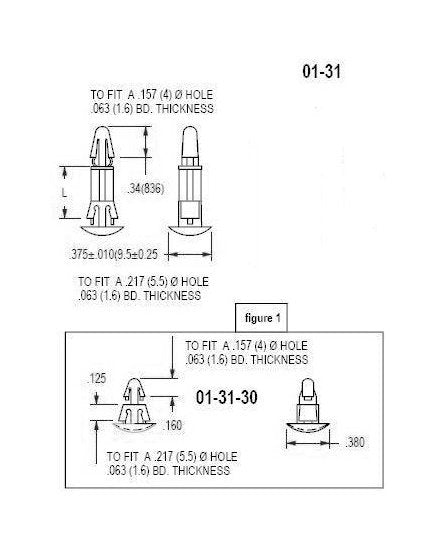

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.375 (9.5) inches (mm)

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2
