31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2

Name: 31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
Brand: All Electronics Hardware
SKU: 01C-199771
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-199771

Durable Nylon 66 UL94V-2 Circuit Board Support with reverse locking design and RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 31 Series Reverse Locking Circuit Board Support is a reliable solution for securing circuit boards in place. Made of Nylon 66 UL94V-2 material, this support offers durability and strength. With dimensions meeting ASTM standards and a temperature range of -40 to 185F, it ensures stability in various environments. The reverse locking design provides added security, making it ideal for applications requiring secure board mounting. RoHS compliance guarantees environmental friendliness.

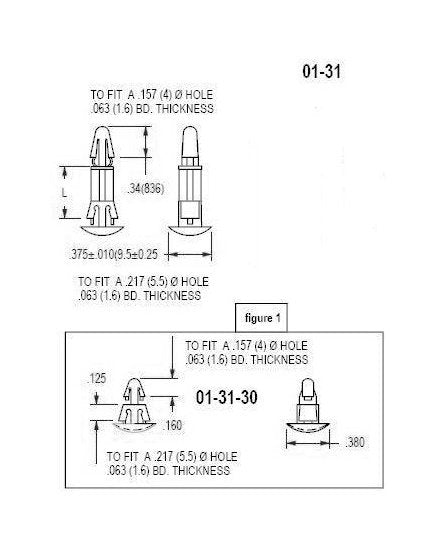

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.375 (9.5) inches (mm)

Specifications Dim L

.551 (14.0) inches (mm)

Specifications Material Code

UL94V-2
