31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
SKU:01C-e502bd
Secure circuit boards with precision using this durable Nylon 66 UL94V-2 circuit board support. RoHS compliant with a wide temperature range.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
$14.99
Quantity: 1
Claim Your Seller Account
31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 31 Series Reverse Locking Circuit Board Support is a vital component for securing circuit boards in place. Made of durable Nylon 66 UL94V-2 material, this support ensures a reliable hold with its reverse locking feature. With dimensions meticulously engineered for precision, including a board hole diameter of .157 inches, board thickness of .062 inches, and chassis hole diameter of .217 inches, this support is designed to meet the demanding requirements of electronic assemblies. Not only is this product RoHS compliant, but it also boasts a temperature range of -40 to 185F (-40 to 85C), making it suitable for a wide range of environments.

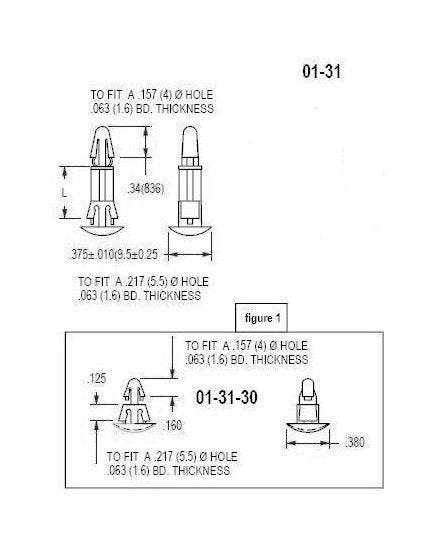

Product Specifications
Specifications Board Hole Diameter
.157 (4.0) inches (mm)
Specifications Board Thickness
.062 (1.6) inches (mm)
Specifications Chassis Hole Diameter
.217 (5.5) inches (mm)
Specifications Chassis Thickness
.02 - .070 (.5 - 1.8) inches (mm)
Specifications Dim Hd
.375 (9.5) inches (mm)
Specifications Dim L
.315 (8.0) inches (mm)
Specifications Material Code
UL94V-2
