31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2

Name: 31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
Brand: All Electronics Hardware
SKU: 01C-b33be3
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-b33be3

Enhance circuit board stability with the 31 Series Reverse Locking Support - Nylon UL94V-2. RoHS compliant, durable, and precise for industrial needs.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your circuit board assembly with the 31 Series Reverse Locking Circuit Board Support. Made of Nylon 66 UL94V-2 material, this support ensures durability and safety with a RoHS compliant design. Featuring a temperature range of -40 to 185°F, it offers secure mounting for boards with precise dimensions. Ideal for industrial and electronic applications, this support meets ASTM D 4066 and PA111 standards, providing reliable circuit board stability.

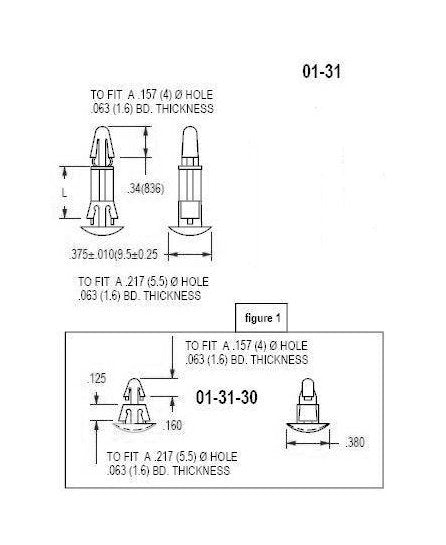

Product Specifications

Specifications Board Hole Diameter

.157 (4.0) inches (mm)

Specifications Board Thickness

.062 (1.6) inches (mm)

Specifications Chassis Hole Diameter

.217 (5.5) inches (mm)

Specifications Chassis Thickness

.02 - .070 (.5 - 1.8) inches (mm)

Specifications Dim Hd

.375 (9.5) inches (mm)

Specifications Dim L

.709 (18.0) inches (mm)

Specifications Material Code

UL94V-2

31 Series Reverse Locking Circuit Board Support - Nylon UL94V-2
