31 Series Shielded Plug Kit - High Voltage
31 Series Shielded Plug Kit - High Voltage
SKU:HIG-cd077d
High Voltage Shielded Plug Kit for Series 31 Connectors, Sea Level Rated, RoHS Compliant
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
31 Series Shielded Plug Kit - High Voltage
$59.99
Quantity: 1
Claim Your Seller Account
31 Series Shielded Plug Kit - High Voltage
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

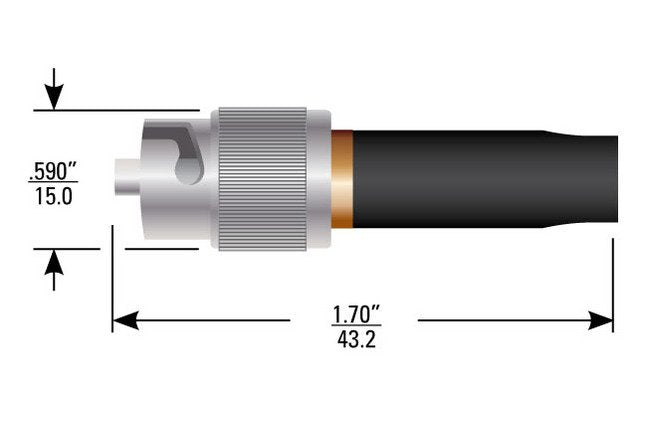

The 31 Series Shielded Plug Kit is designed for high voltage applications, with a sea level rating and a current rating of 10 Amp. This kit includes plug connectors, kits, and cable assemblies that mate all series 311 Cond. 1 connectors and adaptors. The bayonet coupling nut is made of brass with nickel finish, ensuring secure connections. With a voltage rating of 6.5 kVDC and RoHS compliance, this kit meets stringent industry standards for reliability and performance.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 31 (P/N 167-0669) Step 1 Cut cable to length, clean and square. Slip boot over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Step 2 Insert sleeve under braid as shown. Rosin-flux and pot tin dip both the inner core and exposed braid using SN60 solder in accordance with J-STD-006. Remove all flux. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Step 4 Slip prepared cable into the connector body until the flange inside the connector butts against braid cut off. Solder connector body to braid through 4 holes using SN60 solder in accordance with J-STD-006. Clean thoroughly. Step 5 Slide boot into position as shown. Â Download this page as a PDF for best print quality.
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Plug Bag Assembly
Specifications Bayonet Coupling Nut Finish
Nickel
Specifications Bayonet Coupling Nut Material
Brass
Specifications Braid Termination
Solder
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC at sea level
Specifications Voltage Rating
6.5 kVDC
