310-Series 1/4" Brass Pressure and Temperature Plug with Nordel Core

Name: 310-Series 1/4" Brass Pressure and Temperature Plug with Nordel Core
Brand: Parker / Autoclave Engineers
SKU: HIG-7e8557
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-7e8557

Get accurate pressure and temperature readings swiftly with the 310-Series 1/4" Brass Plug, ideal for plant and pipeline systems. Pressure limits up to 1000 psi. Nordel core for hot and chilled water systems.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 310-Series 1/4" Brass Pressure and Temperature Plug with Nordel Core is a reliable and cost-effective solution for taking pressure or temperature readings quickly. Designed for use in plant and pipeline systems, this plug eliminates the need for gauge cocks and thermometer wells. Featuring a self-sealing valve core with superior sealing protection, this plug is suitable for applications with pressure limits up to 1000 psi. The Nordel core (blue cap) ensures excellent service in hot and chilled water systems, with a temperature range of 0-275°F. Tested for leaks at high and low pressure, this plug is a dependable choice for institutional and government buyers.

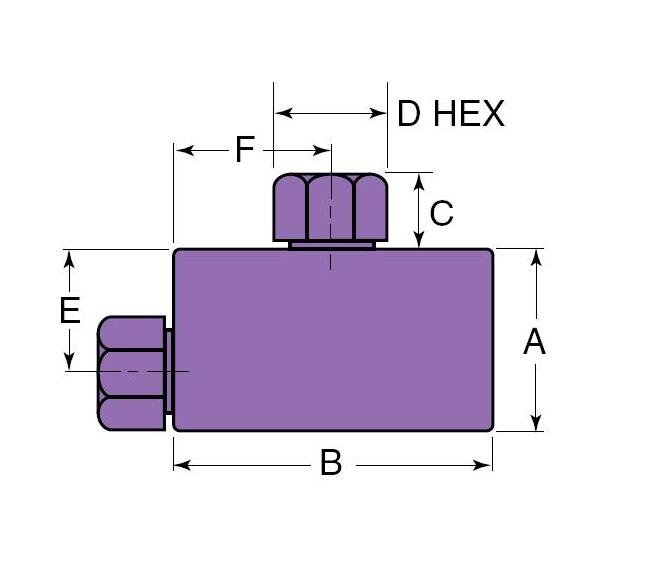

Product Specifications

Specifications A Height

4.00 in | 101.60 mm

Specifications Block Thickness

2.25 in | 57.15 mm

Specifications B Width

5.75 in | 146.05 mm

Specifications Connection Type

SF1500CX

Specifications C Height

1.12 in | 28.45 mm

Specifications D Hex

1.88 in | 47.75 mm

Specifications E Length

2.88 in | 73.03 mm

Specifications F Length

2.88 in | 73.03 mm

Specifications Minimum Opening

0.94 in | 23.80 mm

Specifications Outside Diameter Tube

38.10 mm | 1-1/2 in

Specifications Pressure Rating

15000 psi | 1034.20 bar

Specifications Tubing Engagement Depth

1.88 in | 47.6 mm

310-Series 1/4" Brass Pressure and Temperature Plug with Nordel Core
