311 Series II® Stainless Steel Pressure and Temperature Plug
311 Series II® Stainless Steel Pressure and Temperature Plug
SKU:HIG-702321
The 311 Series II® Stainless Steel Plug for precise pressure and temperature readings in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
311 Series II® Stainless Steel Pressure and Temperature Plug
$39.99
Quantity: 1
Claim Your Seller Account
311 Series II® Stainless Steel Pressure and Temperature Plug
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 311 Series II® Stainless Steel Pressure and Temperature Plug offers reliability in measuring pressure and temperature in industrial settings. Crafted from 316 Stainless Steel with a Nordel core, this plug ensures durability and resistance to various substances. With a 500 psig maximum pressure capacity, 1/4 M size, and easy installation instructions, this plug is ideal for plant systems, heat exchangers, and more. The Pete's Plug II® design allows for quick readings and adjustments without the need for costly gauges, making it a versatile and cost-effective solution.

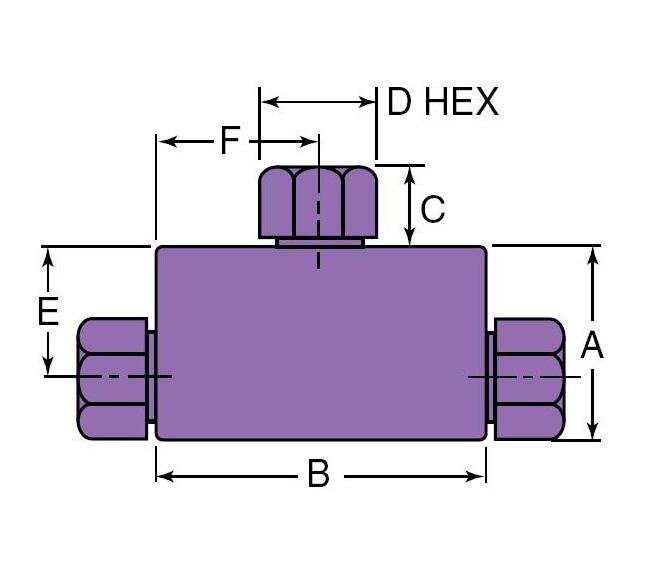

Product Specifications
Specifications A Height
3.00 in | 76.20 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Width
4.12 in | 104.65 mm
Specifications Connection Type
SF1000CX
Specifications C Height
0.72 in | 18.29 mm
Specifications D Hex
1.38 in | 35.05 mm
Specifications E Length
2.06 in | 52.32 mm
Specifications F Length
2.06 in | 52.32 mm
Specifications Minimum Opening
0.688 in | 17.48 mm
Specifications Outside Diameter Tube
25.4 mm | 1 in
Specifications Pressure Rating
20000 psi | 1378.93 bar
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
