316-NM Stainless Steel 1-1/4" US Shackle Pin

Name: 316-NM Stainless Steel 1-1/4" US Shackle Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-8e0ef6
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-8e0ef6

High-quality 316-NM stainless steel shackle pin with 14,000 lb WLL. Made in the USA for secure and reliable connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

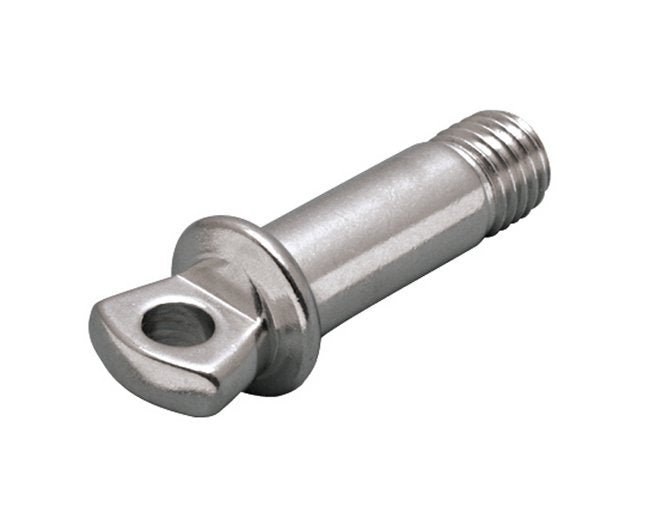

The 316-NM Stainless Steel 1-1/4" US Shackle Pin is a precision machined replacement pin designed for chain shackles and anchor shackles. With a Working Load Limit of 14,000 lb, this load-rated pin is made in the USA using high-quality 316-NM stainless steel. Ensure secure connections with this durable and reliable shackle pin that meets rigorous industrial standards.

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

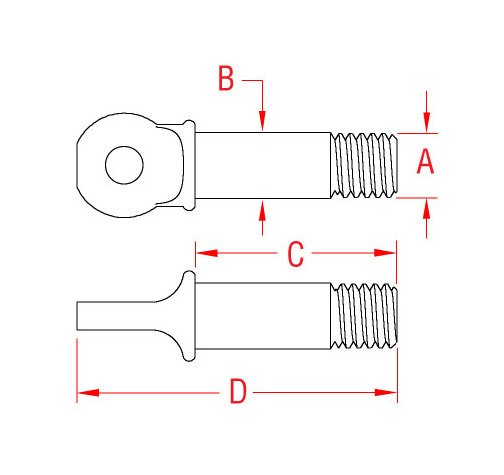

Specifications C

4.54 "

Specifications D

6.65 "

Specifications Dimension A

1-3/8 in.-6

Specifications Dimension B

1.38 "

Specifications Key Features

Load Rated | Made in USA | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

1-1/4 "

Specifications Weight

2.59 lb

Specifications Wll

14,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316-NM Stainless Steel 1-1/4" US Shackle Pin
