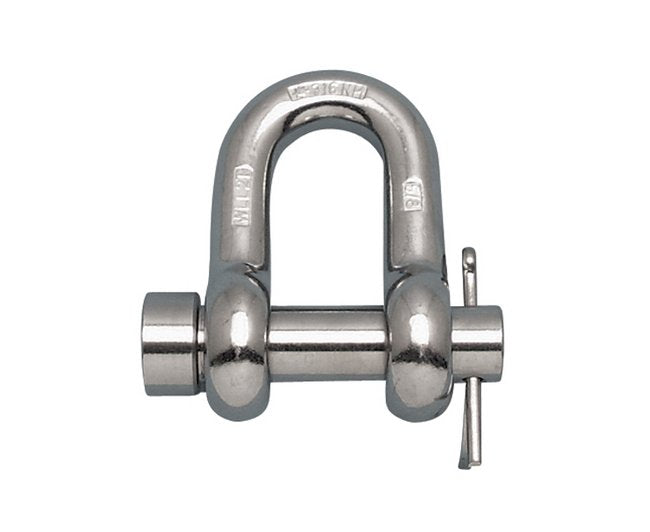

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

SKU:WIR-afa2d1

Premium 316-NM Stainless Steel Chain Shackle with Oversized Round Pin - 7/16" Size, 2,000 lb WLL, Federal Standards Compliant

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

$34.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

316-NM Stainless Steel 7/16 Inch Chain Shackle with Oversized Round Pin

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316-NM Stainless Steel Chain Shackle with an Oversized Round Pin, 7/16 Inch in size, is a robust and reliable wire rope hardware tool designed for demanding applications. This shackle is drop forged, imported, and load rated to ensure superior strength and performance. With a Working Load Limit (WLL) of 2,000 lb, this shackle is ideal for heavy-duty chain tasks. Compliant with federal standards RR-C-271F, type IVB, class 1, this shackle is meticulously marked to the nearest fractional ton, meeting the stringent requirements of government and institutional buyers.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 1, (except 316 stainless steel). Marked to the nearest fractional ton.

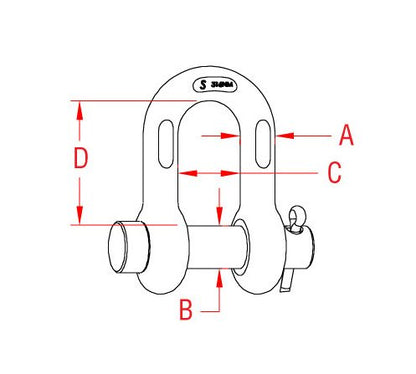

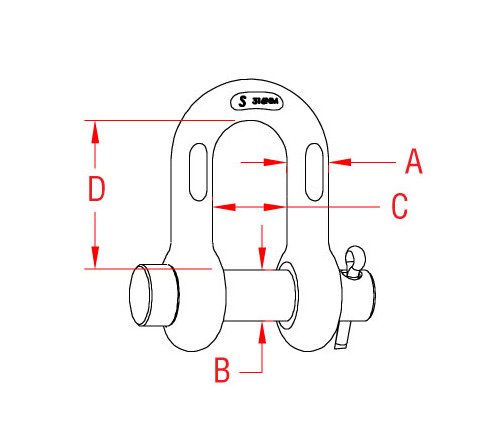

Specifications Applications
Chain
Specifications C
0.75 "
Specifications D
1.43 "
Specifications Dimension B
0.50 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
7/16 "
Specifications Weight
0.43 lb
Specifications Wll
2,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
