316-NM Stainless Steel Chain Shackle, 1/4 in, Oversized Round Pin
316-NM Stainless Steel Chain Shackle, 1/4 in, Oversized Round Pin
SKU:WIR-9ec2fd
High-strength 316-NM Stainless Steel Chain Shackle with Oversized Round Pin, ideal for chain applications. Meets federal standards.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

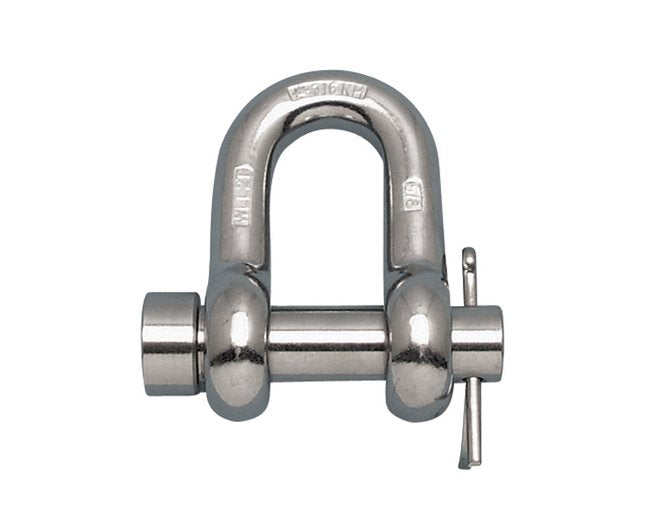

The 316-NM Stainless Steel Chain Shackle with Oversized Round Pin in 1/4-inch size offers exceptional strength and durability for chain applications. This shackle is drop forged, load rated, and meets federal specification RR-C-271F, type IVB, class 1 standards (except for 316 stainless steel), ensuring reliability and safety. Marked to the nearest fractional ton, this shackle is ideal for both consumer and institutional buyers seeking top-quality wire rope hardware.
Product Specifications
Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 1, (except 316 stainless steel). Marked to the nearest fractional ton.
Specifications Applications
Chain

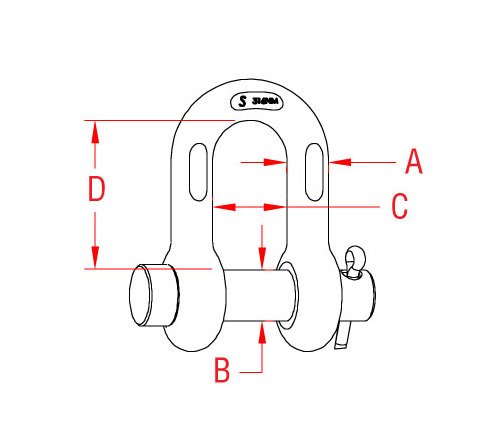

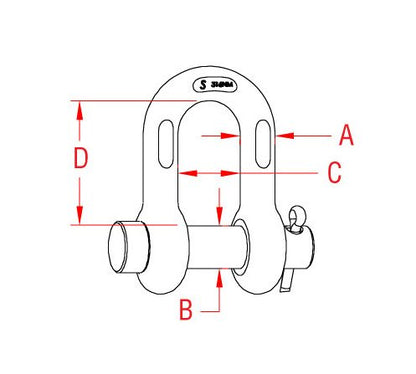

Specifications C
0.46 "
Specifications D
0.87 "
Specifications Dimension B
0.32 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
1/4 "
Specifications Weight
0.09 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
