316-NM Stainless Steel Chain Shackle | 1/4 inch with Oversized Screw Pin
316-NM Stainless Steel Chain Shackle | 1/4 inch with Oversized Screw Pin
SKU:WIR-d5a50f
Durable 316-NM Stainless Steel Chain Shackle with Oversized Screw Pin for heavy-duty applications. Compliant with federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
316-NM Stainless Steel Chain Shackle | 1/4 inch with Oversized Screw Pin
$29.99
Quantity: 1
Claim Your Seller Account
316-NM Stainless Steel Chain Shackle | 1/4 inch with Oversized Screw Pin
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

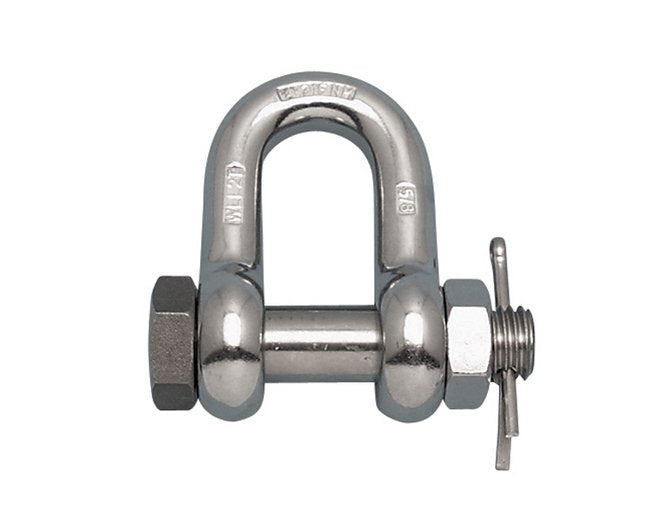

The 316-NM Stainless Steel Chain Shackle is a durable and reliable solution for various chain applications. This shackle, featuring an oversized screw pin for secure fastening, is drop forged and import-rated. With a Working Load Limit (WLL) of 1000 lb, this shackle is ideal for heavy-duty use. Compliant with federal specification RR-C-271F, type IVB, class 2 standards, marking to the nearest fractional ton ensures accuracy in load management.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 2, (except 316 stainless steel). Marked to the nearest fractional ton.

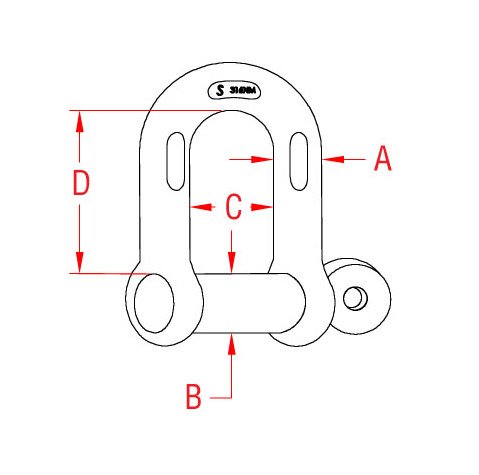

Specifications Applications
Chain
Specifications C
0.46 "
Specifications D
0.87 "
Specifications Dimension B
0.31 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
1/4 "
Specifications Weight
0.09 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
