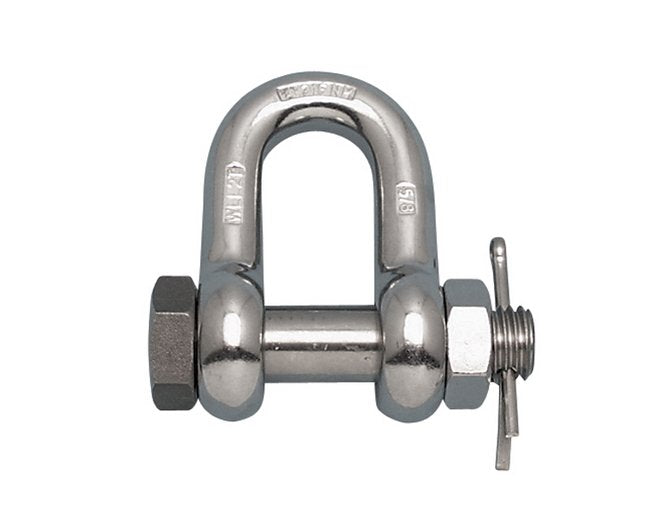

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

SKU:WIR-b24bb9

High-strength 316-NM Stainless Steel Chain Shackle for heavy-duty applications. Compliant with federal standards.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

$24.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

316-NM Stainless Steel Chain Shackle, 5/16 inch Size A with Oversized Screw Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316-NM Stainless Steel Chain Shackle in 5/16 inch Size A is a robust and reliable hardware accessory designed for chain applications. Constructed from high-quality 316-NM stainless steel, this shackle is drop forged for superior strength and durability. With a working load limit of 1,300 lbs, it is suitable for various heavy-duty tasks. This shackle complies with federal specifications RR-C-271F, type IVB, class 2, ensuring top-notch quality and performance. Marked to the nearest fractional ton, it meets the highest precision standards for assurance and safety.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 2, (except 316 stainless steel). Marked to the nearest fractional ton.

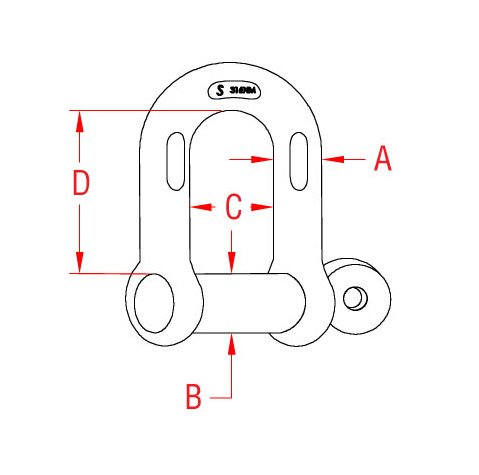

Specifications Applications
Chain
Specifications C
0.52 "
Specifications D
1.02 "
Specifications Dimension B
0.38 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
5/16 "
Specifications Weight
0.16 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
