316-NM Stainless Steel Chain Shackle - 7/16" Size A with Oversized Screw Pin

Name: 316-NM Stainless Steel Chain Shackle - 7/16" Size A with Oversized Screw Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-ce388c
Price: 34.99 USD
Availability: OutOfStock

SKU:WIR-ce388c

Premium 316-NM Stainless Steel Chain Shackle for secure and reliable chain connections.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

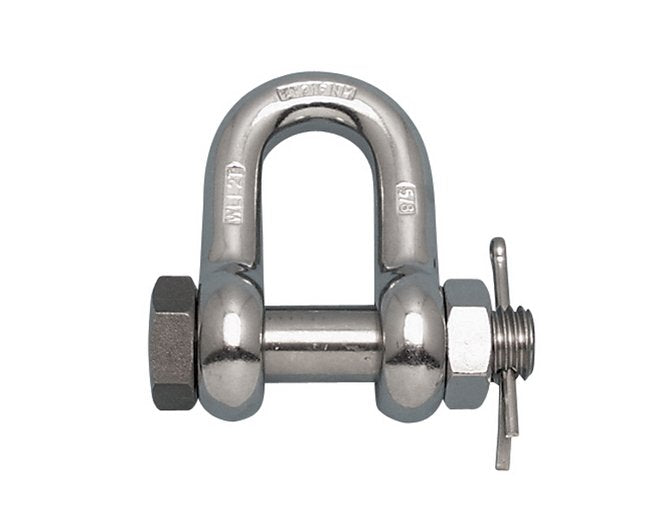

The 316-NM Stainless Steel Chain Shackle in 7/16" Size A is a robust hardware essential for chain applications. This shackle is drop forged, load-rated, and specially designed for durability and reliability. Compliant with federal standard RR-C-271F, type IVB, class 2, this import shackle is marked to the nearest fractional ton, making it ideal for critical industrial applications where safety and quality are paramount.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVB, class 2, (except 316 stainless steel). Marked to the nearest fractional ton.

Specifications Applications

Chain

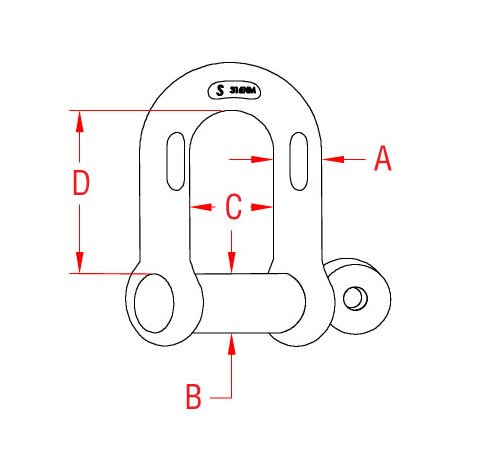

Specifications C

0.75 "

Specifications D

1.43 "

Specifications Dimension B

0.50 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size A

7/16 "

Specifications Weight

0.43 lb

Specifications Wll

2,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316-NM Stainless Steel Chain Shackle - 7/16" Size A with Oversized Screw Pin
