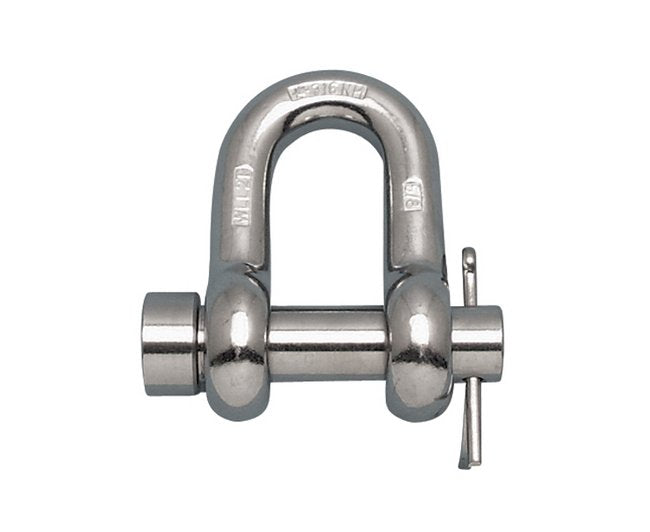

316-NM Stainless Steel Chain Shackle 7/8 Inch with Oversized Round Pin
316-NM Stainless Steel Chain Shackle 7/8 Inch with Oversized Round Pin
SKU:WIR-8aecab
High-strength 316-NM Stainless Steel Chain Shackle with 8,000 lb WLL, ideal for heavy-duty chain applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
316-NM Stainless Steel Chain Shackle 7/8 Inch with Oversized Round Pin
$45.99
Quantity: 1
Claim Your Seller Account
316-NM Stainless Steel Chain Shackle 7/8 Inch with Oversized Round Pin
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 316-NM Stainless Steel Chain Shackle with Oversized Round Pin is a durable and reliable solution for heavy-duty applications. With a Working Load Limit of 8,000 lb, this shackle is drop forged and import-marked, meeting federal specification RR-C-271F, type IVB, class 1 standards. Crafted from high-quality 316-NM stainless steel, it ensures superior strength and corrosion resistance, making it ideal for chain-related operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
I/A/W federal. Specification RR-C-271F, type IVB, class 1, (except 316 stainless steel). Marked to the nearest fractional ton.
Specifications Applications
Chain

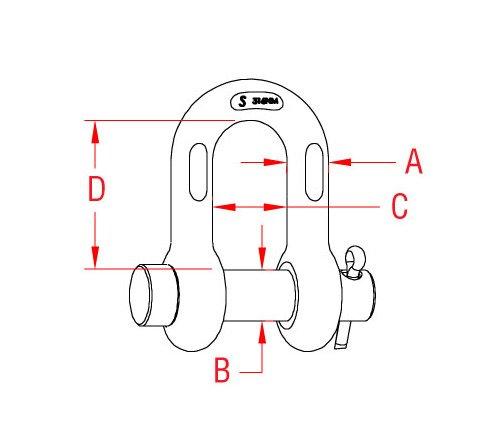

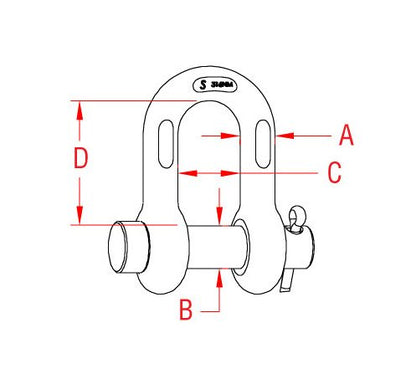

Specifications C
1.45 "
Specifications D
2.88 "
Specifications Dimension B
1.00 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
7/8 "
Specifications Weight
3.22 lb
Specifications Wll
8,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
