316-NM Stainless Steel Lifting Eye Nut UNC Thread

316-NM Stainless Steel Lifting Eye Nut UNC Thread

SKU:STA-534100

Discover the premium 316-NM Stainless Steel Lifting Eye Nut by Suncor for marine & industrial applications. ASTM 316-NM grade, ASME B30.26 compliant.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316-NM Stainless Steel Lifting Eye Nut UNC Thread

316-NM Stainless Steel Lifting Eye Nut UNC Thread

$29.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel Lifting Eye Nut UNC Thread

316-NM Stainless Steel Lifting Eye Nut UNC Thread

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

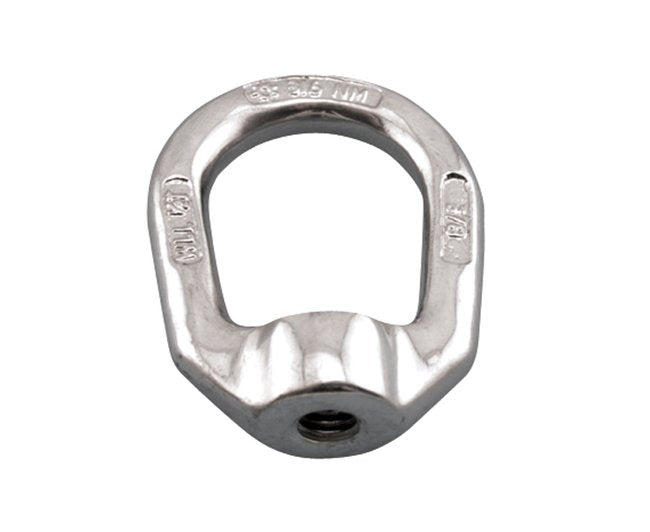

The 316-NM Stainless Steel Lifting Eye Nut, designed by Suncor, offers unparalleled durability and corrosion resistance for marine and industrial projects. This eye nut is ASTM 316-NM grade, drop forged for exceptional strength, and conforms to ASME B30.26 specifications. With a working load limit of 5,140 lb, it meets the highest safety standards. Ideal for heavy-duty lifting applications, this UNC threaded eye nut comes in various sizes, catering to diverse project needs.

Product Specifications

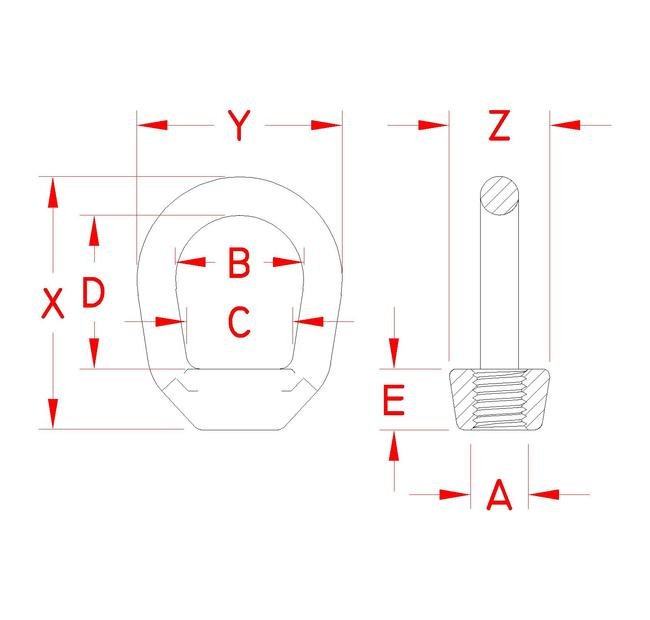

Specifications Dimension A
3/4 in
Specifications Dimension B
1.75 in
Specifications Dimension C
1.25 in
Specifications Dimension D
2.38 in
Specifications Dimension E
0.88 in
Specifications Dimension X
3.82 in
Specifications Dimension Y
3.00 in
Specifications Dimension Z
1.30 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.928 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5310
