316-NM Stainless Steel Plain Eye Bolt - Suncor ASME B30.26 Compliant
316-NM Stainless Steel Plain Eye Bolt - Suncor ASME B30.26 Compliant
SKU:STA-a075da
Premium 316-NM Stainless Steel Eye Bolt, ASME B30.26 Compliant, 1200 lb WLL - Ideal for marine & industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
316-NM Stainless Steel Plain Eye Bolt - Suncor ASME B30.26 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
316-NM Stainless Steel Plain Eye Bolt - Suncor ASME B30.26 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

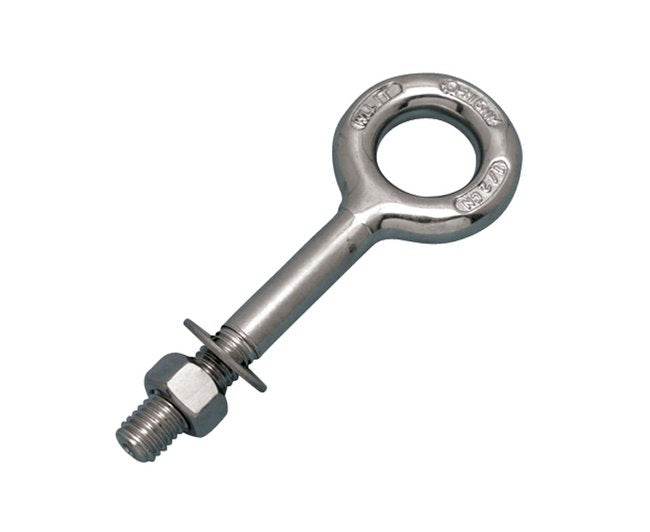

The 316-NM Stainless Steel Plain Eye Bolt by Suncor, compliant with ASME B30.26 standards, offers exceptional corrosion resistance and durability. This UNC threaded eye bolt comes with a nut and washer, featuring a 1200 lb Working Load Limit (WLL) suitable for marine and industrial use. Precision machined and drop forged, this eye bolt is available in sizes from 1/4" to 1", meeting the highest quality standards for reliability and safety.
Product Specifications

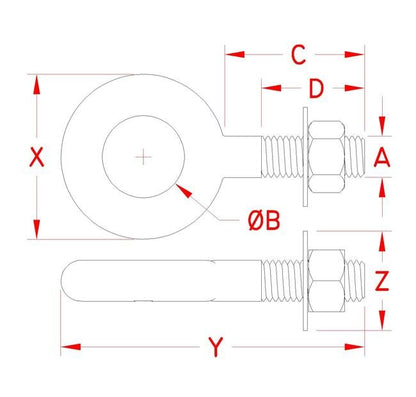

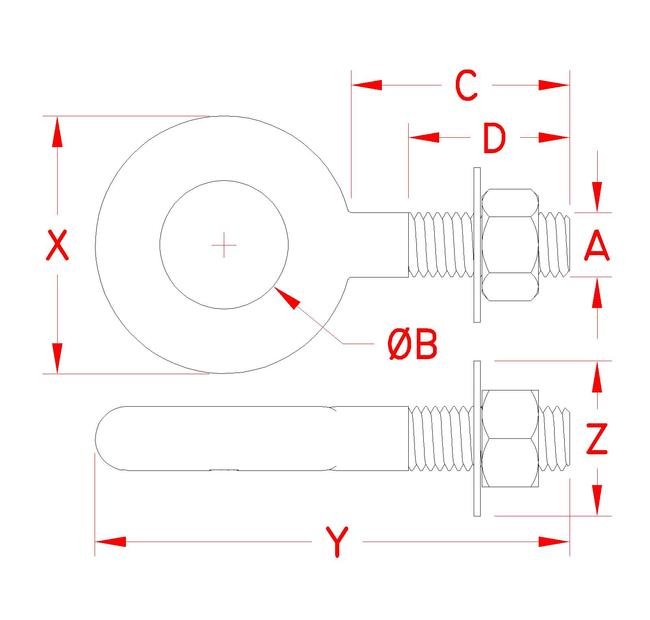

Specifications Dimension A
3/8 in
Specifications Dimension B
0.75 in
Specifications Dimension C
2.50 in
Specifications Dimension D
1.50 in
Specifications Dimension X
1.50 in
Specifications Dimension Y
4.10 in
Specifications Dimension Z
0.76 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
0.2 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
