316-NM Stainless Steel Shackle Bolt - 5/8 Inch

Name: 316-NM Stainless Steel Shackle Bolt - 5/8 Inch
Brand: Lexco Cable Manufacturing
SKU: WIR-3caf7c
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-3caf7c

Premium 5/8 Inch 316-NM Stainless Steel Shackle Bolt for lifting or towing applications. Drop forged, load-rated up to 4,000 lb.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

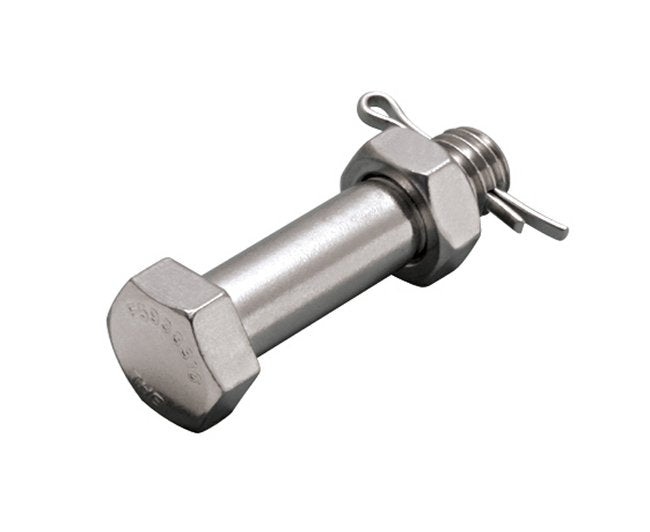

The 5/8 Inch 316-NM Stainless Steel Shackle Bolt is a robust and reliable wire rope hardware accessory designed for lifting and towing applications. Crafted from high-quality 316-NM stainless steel, this shackle bolt is drop forged, import-compliant, and load-rated for up to 4,000 lb. It includes a replacement bolt with cotter pin and nut, making it compatible with chain and anchor shackle bodies (P0115-BD & P0116-BD respectively). Ensure strength and durability with this essential component for your rigging needs.

Product Specifications

Note 0

Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

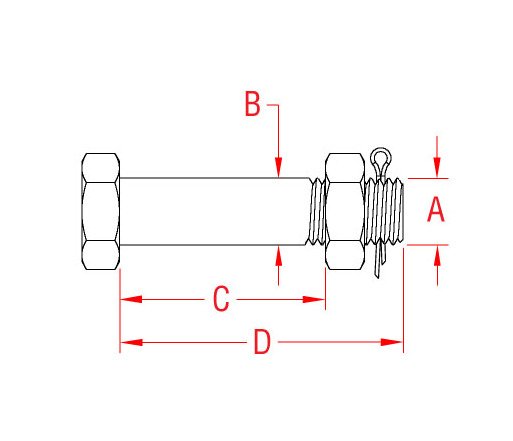

Specifications C

2.13 "

Specifications D

3.19 "

Specifications Dimension A

3/4 in.-10

Specifications Dimension B

0.75 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size

5/8 "

Specifications Weight

0.56 lb

Specifications Wll

4,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306

316-NM Stainless Steel Shackle Bolt - 5/8 Inch
