316-NM Stainless Steel Shackle Pin - 1/4 Inch Size

Name: 316-NM Stainless Steel Shackle Pin - 1/4 Inch Size
Brand: Lexco Cable Manufacturing
SKU: WIR-5410ec
Price: 12.99 USD
Availability: OutOfStock

SKU:WIR-5410ec

High-quality 1/4" 316-NM Stainless Steel Shackle Pin for chain and anchor shackles. Load-rated and precision machined for durability.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

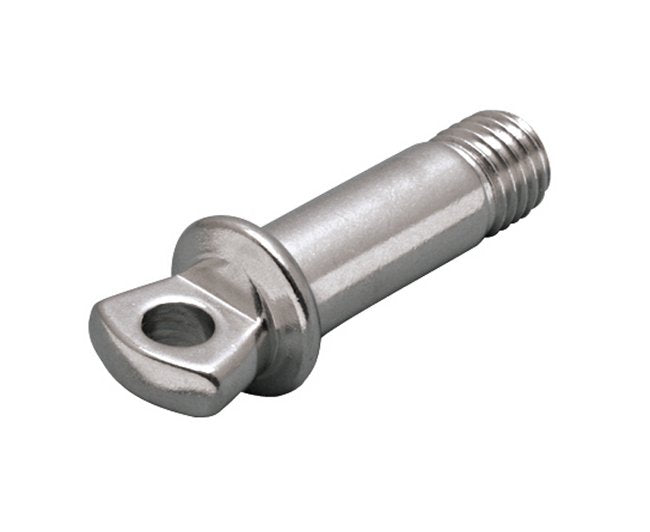

The 316-NM Stainless Steel Shackle Pin in a 1/4 inch size is a high-quality replacement pin designed for chain shackles (S0115-FS) and anchor shackles (S0116-FS). Made from durable 316-NM stainless steel, this precision-machined pin is load-rated and built for reliability. With a Working Load Limit (WLL) of 1000 lb, this shackle pin offers exceptional strength and performance, making it ideal for both commercial and industrial applications.

Product Specifications

Note 0

Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

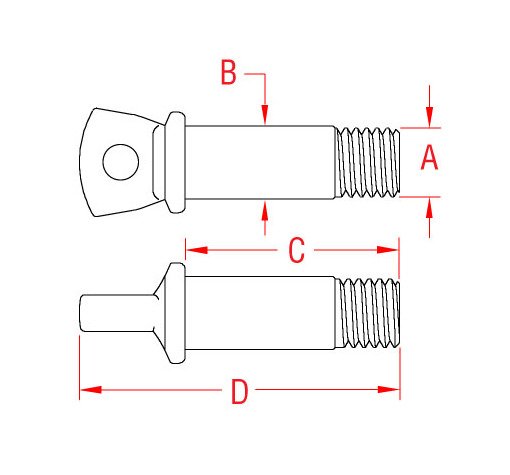

Specifications C

0.98 "

Specifications D

1.55 "

Specifications Dimension A

5/16 in.-18

Specifications Dimension B

0.31 "

Specifications Key Features

Import | Load Rated | Precision Machined

Specifications Material

316-NM Stainless Steel

Specifications Size

1/4 "

Specifications Weight

0.03 lb

Specifications Wll

1000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340

316-NM Stainless Steel Shackle Pin - 1/4 Inch Size
