316-NM Stainless Steel Shackle Pin, 1 Inch Size

316-NM Stainless Steel Shackle Pin, 1 Inch Size

SKU:WIR-92d9a0

High-strength 1 Inch 316-NM Stainless Steel Shackle Pin for chain and anchor shackles. Load-rated and corrosion-resistant.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

316-NM Stainless Steel Shackle Pin, 1 Inch Size

316-NM Stainless Steel Shackle Pin, 1 Inch Size

$29.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel Shackle Pin, 1 Inch Size

316-NM Stainless Steel Shackle Pin, 1 Inch Size

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

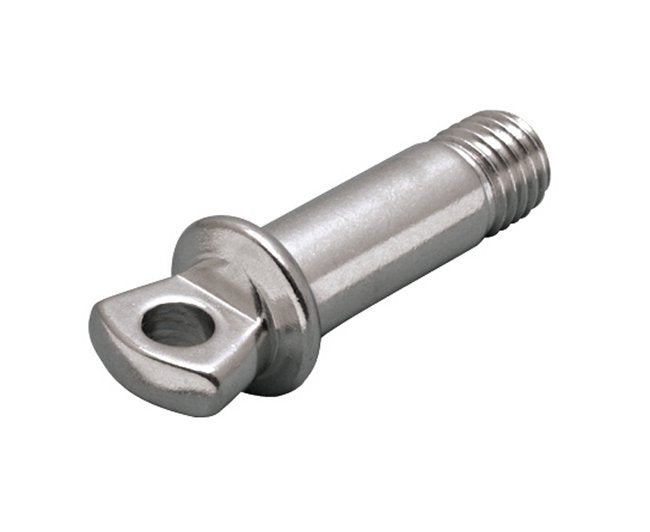

The 316-NM Stainless Steel Shackle Pin in 1-inch size is a precision-machined, load-rated replacement pin designed for chain shackles (S0115-FS) and anchor shackles (S0116-FS). With a Working Load Limit (WLL) of 10,000 lb, this pin offers superior strength and durability. Crafted from high-quality 316-NM stainless steel, it is corrosion-resistant and suitable for demanding marine and industrial applications. Ensure reliability and safety in your operations with this import pin that meets strict industry standards.

Product Specifications

Note 0
Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

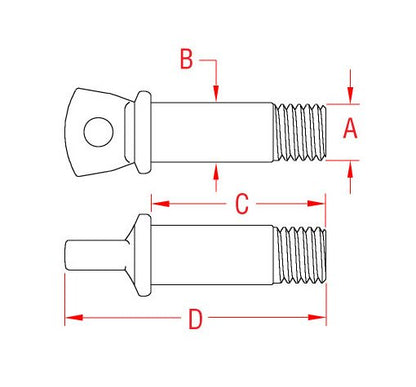

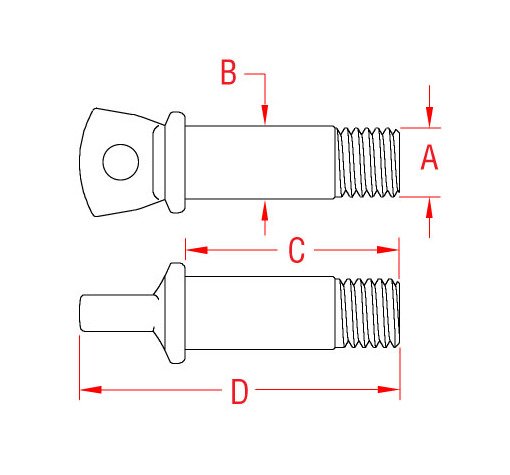

Specifications C
3.70 "
Specifications D
5.35 "
Specifications Dimension A
1-1/8 in.-7
Specifications Dimension B
1.13 "
Specifications Key Features
Import | Load Rated | Precision Machined
Specifications Material
316-NM Stainless Steel
Specifications Size
1 "
Specifications Weight
1.37 lb
Specifications Wll
10,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
