316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

SKU:WIR-fec2f3

High-quality 316-NM Stainless Steel Shackle Pin, 5/16" size, load rated 1,300 lbs. Corrosion-resistant, precision machined.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

$14.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

316-NM Stainless Steel Shackle Pin, 5/16 Inch Size

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

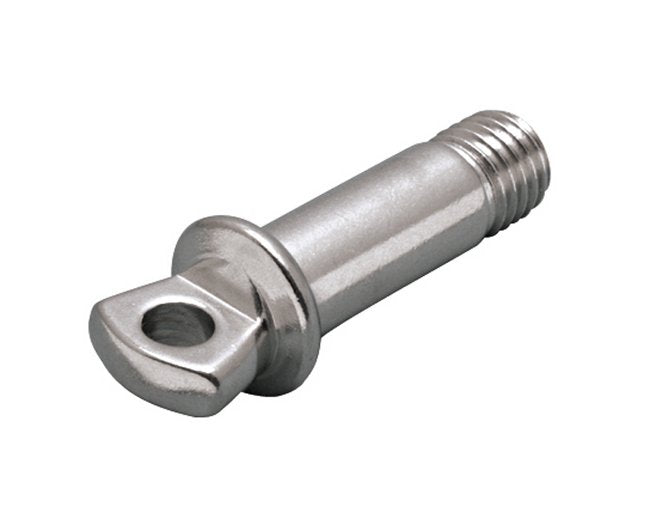

The 316-NM Stainless Steel Shackle Pin in 5/16" size is a durable and reliable wire rope hardware component essential for various applications. Precision machined and load rated for up to 1,300 lbs, this replacement pin is compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS). Made of high-quality 316-NM stainless steel, this shackle pin ensures corrosion resistance and longevity, meeting stringent industry standards for quality and performance.

Product Specifications

Note 0
Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

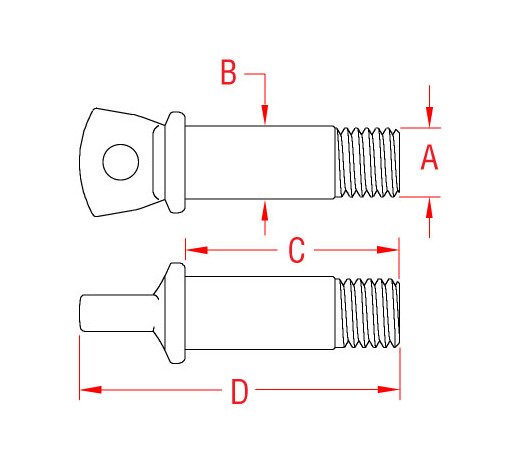

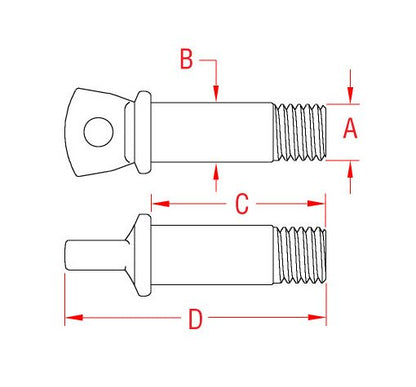

Specifications C
1.16 "
Specifications D
1.84 "
Specifications Dimension A
3/8 in.-16
Specifications Dimension B
0.38 "
Specifications Key Features
Import | Load Rated | Precision Machined
Specifications Material
316-NM Stainless Steel
Specifications Size
5/16 "
Specifications Weight
0.05 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
