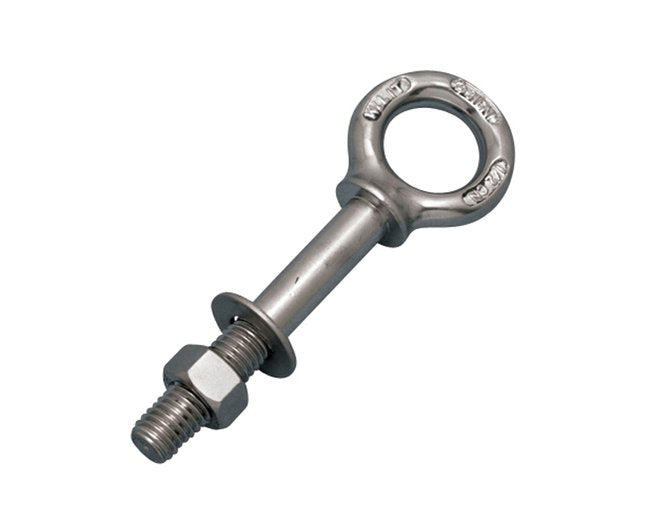

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

SKU:STA-d9f084

Premium 316-NM Stainless Steel Shoulder Eye Bolt for marine and industrial use. ASME B30.26 compliant, with 5,140 lb working load limit.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

$24.99

Quantity: 1

Claim Your Seller Account

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

316-NM Stainless Steel Shoulder Eye Bolt UNC Thread

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 316-NM Stainless Steel Shoulder Eye Bolt is a robust and corrosion-resistant option designed to meet the demands of marine and industrial applications. Made from grade 316-NM stainless steel and featuring precision drop-forged machining, this eye bolt offers exceptional durability and a working load limit of 5,140 lb. With dimensions ranging from 1/4" to 1" and ASME B30.26 compliance, this Suncor exclusive product ensures reliability and performance for a wide range of projects.

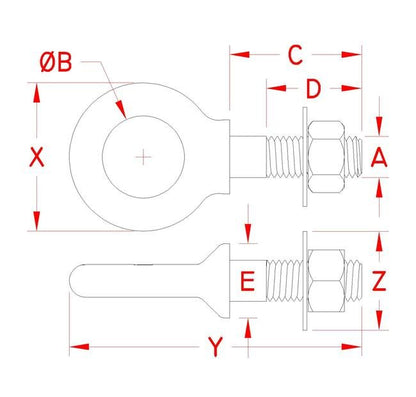

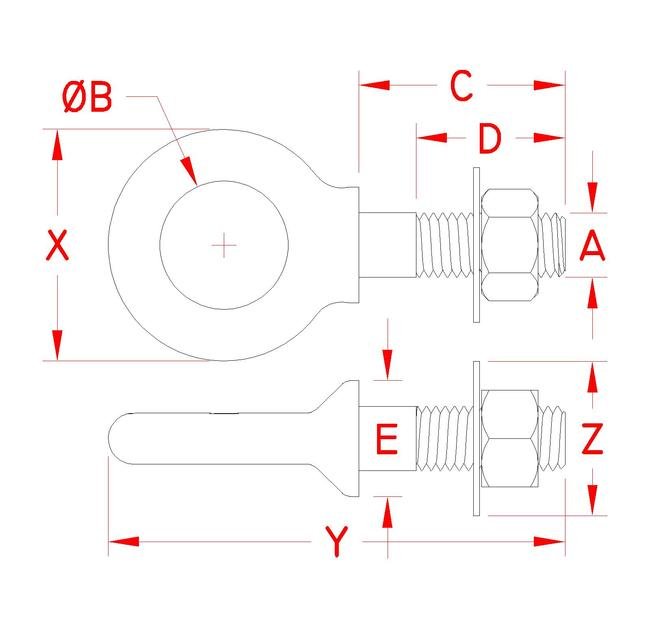

Product Specifications

Specifications Dimension A
3/4 in
Specifications Dimension B
1.50 in
Specifications Dimension C
4.50 in
Specifications Dimension D
2.00 in
Specifications Dimension E
1.31 in
Specifications Dimension X
2.76 in
Specifications Dimension Y
7.60 in
Specifications Dimension Z
1.44 in
Specifications Fabrication Type
Drop Forged | Precision Machined
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Specification
ASME B30.26
Specifications Suncor Exclusive
Yes
Specifications Weight
1.42 lb
Specifications Working Load Limit Wll
5,140 lb
CAGE
1CXX6
NAICS
332722
PSC
5306
